Cycle Channel Oscillator [LazyBear]

Here's an oscillator derived from my previous script, Cycle Channel Clone (https://www.tradingview.com/v/QmgtSIj5/).

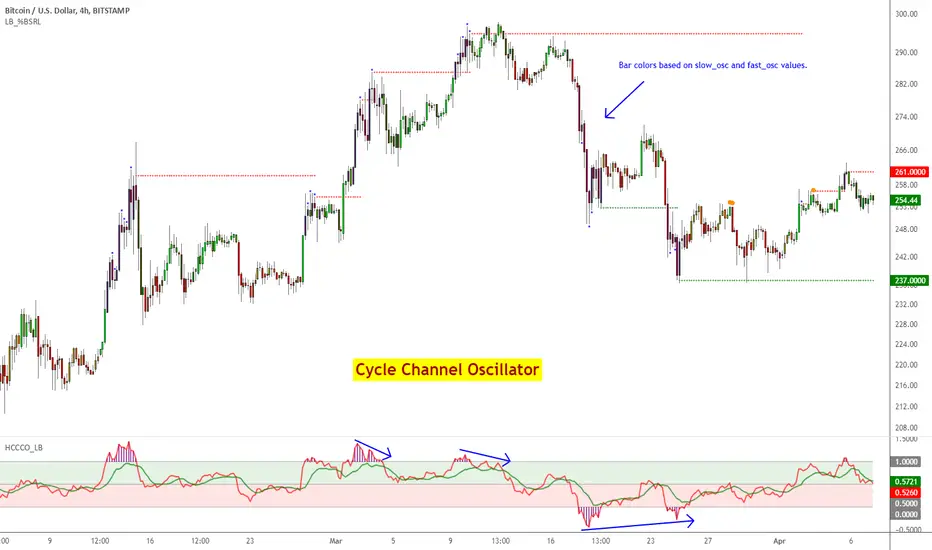

There are 2 oscillator plots - fast & slow. Fast plot shows the price location with in the medium term channel, while slow plot shows the location of short term midline of cycle channel with respect to medium term channel.

Usage of this is similar to %b oscillator. The slow plot can be considered as the signal line.

Bar colors can be enabled via options page. When short plot is above 1.0 or below 0, they are marked purple (both histo and the bar color) to highlight the extreme condition.

This makes use of the default 10/30 values of Cycle Channel, but may need tuning for your instrument.

More info:

List of my free indicators: http://bit.ly/1LQaPK8
List of my app-store indicators: http://blog.tradingview.com/?p=970 (More info: http://bit.ly/lazybeardoc)

List of my free indicators: http://bit.ly/1LQaPK8
List of my indicators at Appstore: http://blog.tradingview.com/?p=970
開源腳本

本著真正的TradingView精神,該腳本的作者將其開源發布,以便交易者可以理解和驗證它。為作者喝彩吧!您可以免費使用它,但在出版物中重複使用此代碼受網站規則的約束。 您可以收藏它以在圖表上使用。

免責聲明

這些資訊和出版物並不意味著也不構成TradingView提供或認可的金融、投資、交易或其他類型的意見或建議。請在使用條款閱讀更多資訊。

想在圖表上使用此腳本?
//
// @author LazyBear
// List of my public indicators: http://bit.ly/1LQaPK8
// List of my app-store indicators: http://blog.tradingview.com/?p=970
//
study("Hurst Cycle Channel Clone Oscillator [LazyBear]", shorttitle="HCCCO_LB", overlay=false)
scl_t =  input(10, title="Short Cycle Length?")
mcl_t =  input(30, title="Medium Cycle Length?")
scm =  input(1.0, title="Short Cycle Multiplier?")
mcm =  input(3.0, title="Medium Cycle Multiplier?")
src=input(close, title="Source")
scl = scl_t/2, mcl = mcl_t/2
ma_scl=rma(src,scl)
ma_mcl=rma(src,mcl)
scm_off = scm*atr(scl)
mcm_off = mcm*atr(mcl)
scl_2=scl/2, mcl_2=mcl/2
sct =  nz(ma_scl[scl_2], src)+ scm_off
scb =  nz(ma_scl[scl_2], src)- scm_off
mct =  nz(ma_mcl[mcl_2], src)+ mcm_off
mcb =  nz(ma_mcl[mcl_2], src)- mcm_off
scmm=avg(sct,scb)
ul=plot(1.0, title="UpperLine", color=gray), ml=plot(0.5, title="MidLine", color=gray), ll=plot(0.0, title="LowerLine", color=gray)
fill(ll,ml,color=red), fill(ul,ml,color=green)
omed=(scmm-mcb)/(mct-mcb)
oshort=(src-mcb)/(mct-mcb)
plot(omed>=1.0?omed:na, histbase=1.0, style=histogram, color=purple, linewidth=2, title="MediumCycleOB")
plot(omed<=0.0?omed:na, histbase=0.0, style=histogram, color=purple, linewidth=2, title="MediumCycleOS")
plot(oshort>=1.0?oshort:na, histbase=1.0, style=histogram, color=purple, linewidth=2, title="ShortCycleOB")
plot(oshort<=0.0?oshort:na, histbase=0.0, style=histogram, color=purple, linewidth=2, title="ShortCycleOS")
plot(oshort, color=red, linewidth=2, title="FastOsc")
plot(omed, color=green, linewidth=2, title="SlowOsc")
ebc=input(false, title="Enable bar colors")
bc=(oshort>0.5)?(oshort>1.0?purple:(oshort>omed?lime:green)):(oshort<0?purple:(oshort<omed?red:orange))
barcolor(ebc?bc:na)
