LazyBear

Coral Trend Indicator [LazyBear]

19928瀏覽
3875
19928 18
This is a famous trend indicator in MT4 platform. Is this better than other MA based trend systems? I will let you decide that :)

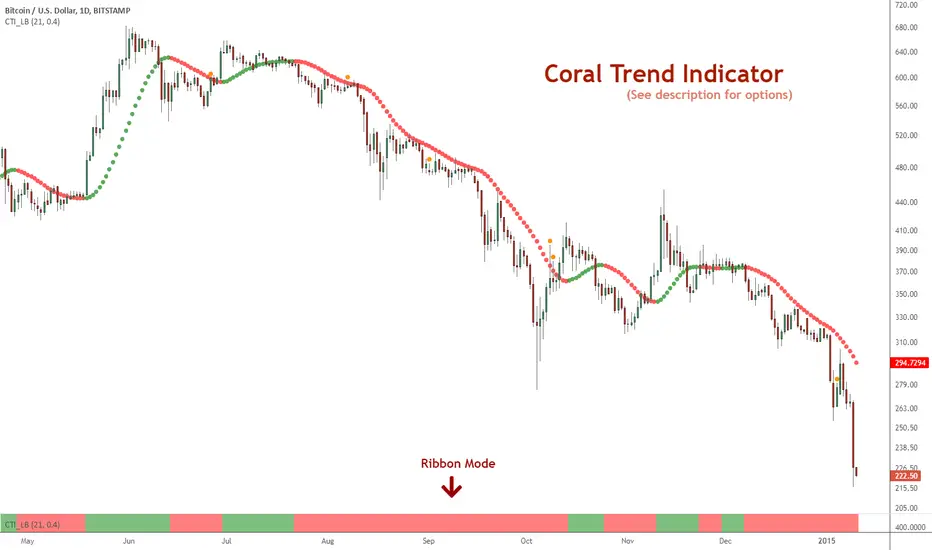

Supported modes:
- Trend mode: This is the default. Draws a trend line (like MA) and colors them based on the trend.
- Ribbon Mode: Shown at the bottom pane. No trend lines are drawn.
- OverlayMode: Bars are colored based on the current trend. Trend line is also displayed (default color=gray).

Complete list of all my indicators:
https://docs.google.com/document/d/15AGC...
從喜愛的腳本中移除 添加到喜愛的腳本
//
// @author LazyBear
// List of all my indicators:
// https://docs.google.com/document/d/15AGCufJZ8CIUvwFJ9W-IKns88gkWOKBCvByMEvm5MLo/edit?usp=sharing
//
study(title="Coral Trend Indicator [LazyBear]", shorttitle="CTI_LB", overlay=true)
src=close
sm =input(21, title="Smoothing Period")
cd = input(0.4, title="Constant D")
ebc=input(false, title="Color Bars")
ribm=input(false, title="Ribbon Mode")
di = (sm - 1.0) / 2.0 + 1.0
c1 = 2 / (di + 1.0)
c2 = 1 - c1
c3 = 3.0 * (cd * cd + cd * cd * cd)
c4 = -3.0 * (2.0 * cd * cd + cd + cd * cd * cd)
c5 = 3.0 * cd + 1.0 + cd * cd * cd + 3.0 * cd * cd
i1 = c1*src + c2*nz(i1[1])
i2 = c1*i1 + c2*nz(i2[1])
i3 = c1*i2 + c2*nz(i3[1])
i4 = c1*i3 + c2*nz(i4[1])
i5 = c1*i4 + c2*nz(i5[1])
i6 = c1*i5 + c2*nz(i6[1])

bfr = -cd*cd*cd*i6 + c3*(i5) + c4*(i4) + c5*(i3)
// --------------------------------------------------------------------------
// For the Pinescript coders: Determining trend based on the mintick step.
// --------------------------------------------------------------------------
//bfrC = bfr - nz(bfr[1]) > syminfo.mintick ? green : bfr - nz(bfr[1]) < syminfo.mintick ? red : blue
bfrC = bfr > nz(bfr[1]) ? green : bfr < nz(bfr[1])  ? red : blue
tc=ebc?gray:bfrC
plot(ribm?na:bfr, title="Trend", linewidth=3, style=circles, color=tc)
bgcolor(ribm?bfrC:na, transp=50)
barcolor(ebc?bfrC:na)
http://fxcodebase.com/code/download/file.php?id=4220&%3Bmode=view

A two indicator with separate Constants crossover seems to have merit.
回覆
LazyBear coondawg71
Thanks for the info.
回覆


I plugged in a couple of Constants that I use....0.739 and 0.886. And these to the default for a Multi Time Frame effect which will confirm your bias in trade direction. I offer just a simple example of how 1.) When all three signals agree its safe to look for trades in that directional bias short or long. 2.) Once a bias is established, look for value in divergence price bars that close against the perceived trend. 3.) Mark the closing price where the 3 signals agree with a horizontal ray...best trades are those with no draw down due to good timing execution which usually takes place AFTER a test/retrace. This example shows how the given signal offered a trading range of over 3% to work Long trades.
+4 回覆
GermanTrader coondawg71
I had a similar idea to compare the indicator by itself and tested this by only changing the periods not the constant and this really works to filter out the strongest trend.
回覆
coondawg71 GermanTrader
Off the top of my head I think it would be better to keep the periods the same, this way its apples to apples. I"ve done some work with other indi's that have this same ability. Proves to be better this way, at least in the MTF fashion, getting all three speeds to compliment each other is the advantage in the signal.
+1 回覆
LazyBear coondawg71
Nice. I built this as a separate indicator, but I like how visual yours looks.

+5 回覆
Any chance of releasing this as well?
+4 回覆
could u please explain how different is it from "CM_Ultimate_MA_MTF_V2"
回覆
Ultimate_MA is MA with coloring based on the direction (so, the lag depends on the MA calculation).

CTI is primarily for trend filtering. I'd suggest not to use it as a xMA (EMA/SMA/WMA/...) replacement.
+1 回覆
What exactly does the Coral Trend Indicator calculate to determine the current trend? I don't see typical EMA/SMA moving averages in the code.

And what is the "Constant D" of 0.4? What happens if I change the value to 0.2 or 0.6? What does it amplify in the calculation?
+2 回覆
