Copeland Dynamic Dominance Matrix System | GForge

Copeland Dynamic Dominance Matrix System | GForge - v1

---

📊 COMPREHENSIVE SYSTEM OVERVIEW

The GForge Dynamic BB% TrendSync System represents a revolutionary approach to algorithmic portfolio management, combining cutting-edge statistical analysis, momentum detection, and regime identification into a unified framework. This system processes up to 39 different cryptocurrency assets simultaneously, using advanced mathematical models to determine optimal capital allocation across dynamic market conditions.

Core Innovation: Multi-Dimensional Analysis

Unlike traditional single-asset indicators, this system operates on multiple analytical dimensions:

Momentum Analysis: Dual Bollinger Band Modified Deviation (DBBMD) calculations
Relative Strength: Comprehensive dominance matrix with head-to-head comparisons
Fundamental Screening: Alpha and Beta statistical filtering
Market Regime Detection: Five-component statistical testing framework
Portfolio Optimization: Dynamic weighting and allocation algorithms
Risk Management: Multi-layered protection and regime-based positioning

---

🔧 DETAILED COMPONENT BREAKDOWN

1. Dynamic Bollinger Band % Modified Deviation Engine (DBBMD)

The foundation of this system is an advanced oscillator that combines two independent Bollinger Band systems with asymmetric parameters to create unique momentum readings.

Technical Implementation:

[

Pine Script®

// BB System 1: Fast-reacting with extended standard deviation primary_bb1_ma_len = 40 // Shorter MA for responsiveness primary_bb1_sd_len = 65 // Longer SD for stability primary_bb1_mult = 1.0 // Standard deviation multiplier // BB System 2: Complementary asymmetric design primary_bb2_ma_len = 8 // Longer MA for trend following primary_bb2_sd_len = 66 // Shorter SD for volatility sensitivity primary_bb2_mult = 1.7 // Wider bands for reduced noise

Key Features:

Asymmetric Design: The intentional mismatch between MA and Standard Deviation periods creates unique oscillation characteristics that traditional Bollinger Bands cannot achieve
Percentage Scale: All readings are normalized to 0-100% scale for consistent interpretation across assets
Multiple Combination Modes:BB1 Only: Fast/reactive system
BB2 Only: Smooth/stable system
Average: Balanced blend (recommended)
Both Required: Conservative (both must agree)
Either One: Aggressive (either can trigger)
Mean Deviation Filter: Additional volatility-based layer that measures the standard deviation of the DBBMD% itself, creating dynamic trigger bands

Signal Generation Logic:

Pine Script®

// Primary thresholds primary_long_threshold = 71 // DBBMD% level for bullish signals primary_short_threshold = 33 // DBBMD% level for bearish signals // Mean Deviation creates dynamic bands around these thresholds upper_md_band = combined_bb + (md_mult * bb_std) lower_md_band = combined_bb - (md_mult * bb_std) // Signal triggers when DBBMD crosses these dynamic bands long_signal = lower_md_band > long_threshold short_signal = upper_md_band < short_threshold

For more information on this BB% indicator, find it here:
https://www.tradingview.com/script/wtHSs3jt-BB-TrendSync/

2. Revolutionary Dominance Matrix System

This is the system's most sophisticated innovation - a comprehensive framework that compares every asset against every other asset to determine relative strength hierarchies.

Mathematical Foundation:

The system constructs a mathematical matrix where each cell [i,j] represents whether asset i dominates asset j:

Pine Script®

// Core dominance matrix (39x39 for maximum assets) var matrix<int> dominance_matrix = matrix.new<int>(39, 39, 0) // For each qualifying asset pair (i,j): for i = 0 to active_count - 1 for j = 0 to active_count - 1 if i != j // Calculate price ratio BB% TrendSync for asset_i/asset_j ratio_array = calculate_price_ratios(asset_i, asset_j) ratio_dbbmd = calculate_dbbmd(ratio_array) // Asset i dominates j if ratio is in uptrend if ratio_dbbmd_state == 1 matrix.set(dominance_matrix, i, j, 1)

Copeland Scoring Algorithm:

Each asset receives a dominance score calculated as:
Dominance Score = Total Wins - Total Losses

Pine Script®

// Calculate net dominance for each asset for i = 0 to active_count - 1 wins = 0 losses = 0 for j = 0 to active_count - 1 if i != j if matrix.get(dominance_matrix, i, j) == 1 wins += 1 else losses += 1 copeland_score = wins - losses array.set(dominance_scores, i, copeland_score)

Head-to-Head Analysis Process:

Ratio Construction: For each asset pair, calculate price_asset_A / price_asset_B
DBBMD Application: Apply the same DBBMD analysis to these ratios
Trend Determination: If ratio DBBMD shows uptrend, Asset A dominates Asset B
Matrix Population: Store dominance relationships in mathematical matrix
Score Calculation: Sum wins minus losses for final ranking

This creates a tournament-style ranking where each asset's strength is measured against all others, not just against a benchmark.

3. Advanced Alpha & Beta Filtering System

The system incorporates fundamental analysis through Capital Asset Pricing Model (CAPM) calculations to filter assets based on risk-adjusted performance.

Alpha Calculation (Excess Return Analysis):

Pine Script®

// CAPM Alpha calculation f_calc_alpha(asset_prices, benchmark_prices, alpha_length, beta_length, risk_free_rate) => // Calculate asset and benchmark returns asset_returns = calculate_returns(asset_prices, alpha_length) benchmark_returns = calculate_returns(benchmark_prices, alpha_length) // Get beta for expected return calculation beta = f_calc_beta(asset_prices, benchmark_prices, beta_length) // Average returns over period avg_asset_return = array_average(asset_returns) * 100 avg_benchmark_return = array_average(benchmark_returns) * 100 // Expected return using CAPM: E(R) = Beta * Market_Return + Risk_Free_Rate expected_return = beta * avg_benchmark_return + risk_free_rate // Alpha = Actual Return - Expected Return alpha = avg_asset_return - expected_return

Beta Calculation (Volatility Relationship):

Pine Script®

// Beta measures how much an asset moves relative to benchmark f_calc_beta(asset_prices, benchmark_prices, length) => // Calculate return series for both assets asset_returns = [] benchmark_returns = [] // Populate return arrays for i = 0 to length - 1 asset_return = (current_price - previous_price) / previous_price benchmark_return = (current_bench - previous_bench) / previous_bench // Calculate covariance and variance covariance = calculate_covariance(asset_returns, benchmark_returns) benchmark_variance = calculate_variance(benchmark_returns) // Beta = Covariance(Asset, Market) / Variance(Market) beta = covariance / benchmark_variance

Filtering Applications:

Alpha Filter: Only includes assets with alpha above specified threshold (e.g., >0.5% monthly excess return)
Beta Filter: Screens for desired volatility characteristics (e.g., beta >1.0 for aggressive assets)
Combined Screening: Both filters must pass for asset qualification
Dynamic Thresholds: User-configurable parameters for different market conditions

4. Intelligent Tie-Breaking Resolution System

When multiple assets have identical dominance scores, the system employs sophisticated methods to determine final rankings.

Standard Tie-Breaking Hierarchy:

Pine Script®

// Primary tie-breaking logic if score_i == score_j // Tied dominance scores // Level 1: Compare Beta values (higher beta wins) beta_i = array.get(beta_values, i) beta_j = array.get(beta_values, j) if beta_j > beta_i swap_positions(i, j) else if beta_j == beta_i // Level 2: Compare Alpha values (higher alpha wins) alpha_i = array.get(alpha_values, i) alpha_j = array.get(alpha_values, j) if alpha_j > alpha_i swap_positions(i, j)

Advanced Tie-Breaking (Head-to-Head Analysis):

For the top 3 performers, an enhanced tie-breaking mechanism analyzes direct head-to-head price ratio performance:

Pine Script®

// Advanced tie-breaker for top performers f_advanced_tiebreaker(asset1_idx, asset2_idx, lookback_period) => // Calculate price ratio over lookback period ratio_history = [] for k = 0 to lookback_period - 1 price_ratio = price_asset1[k] / price_asset2[k] array.push(ratio_history, price_ratio) // Apply simplified trend analysis to ratio current_ratio = array.get(ratio_history, 0) average_ratio = calculate_average(ratio_history) // Asset 1 wins if current ratio > average (trending up) if current_ratio > average_ratio return 1 // Asset 1 dominates else return -1 // Asset 2 dominates

5. Five-Component Aggregate Market Regime Filter

This sophisticated framework combines multiple statistical tests to determine whether market conditions favor trending strategies or require defensive positioning.

Component 1: Augmented Dickey-Fuller (ADF) Test

Tests for unit root presence to distinguish between trending and mean-reverting price series.

Pine Script®

// Simplified ADF implementation calculate_adf_statistic(price_series, lookback) => // Calculate first differences differences = [] for i = 0 to lookback - 2 diff = price_series - price_series[i+1] array.push(differences, diff) // Statistical analysis of differences mean_diff = calculate_mean(differences) std_diff = calculate_standard_deviation(differences) // ADF statistic approximation adf_stat = mean_diff / std_diff // Compare against threshold for trend determination is_trending = adf_stat <= adf_threshold

Component 2: Directional Movement Index (DMI)

Classic Wilder indicator measuring trend strength through directional movement analysis.

Pine Script®

// DMI calculation for trend strength calculate_dmi_signal(high_data, low_data, close_data, period) => // Calculate directional movements plus_dm_sum = 0.0 minus_dm_sum = 0.0 true_range_sum = 0.0 for i = 1 to period // Directional movements up_move = high_data - high_data[i+1] down_move = low_data[i+1] - low_data // Accumulate positive/negative movements if up_move > down_move and up_move > 0 plus_dm_sum += up_move if down_move > up_move and down_move > 0 minus_dm_sum += down_move // True range calculation true_range_sum += calculate_true_range(i) // Calculate directional indicators di_plus = 100 * plus_dm_sum / true_range_sum di_minus = 100 * minus_dm_sum / true_range_sum // ADX calculation dx = 100 * math.abs(di_plus - di_minus) / (di_plus + di_minus) adx = dx // Simplified for demonstration // Trending if ADX above threshold is_trending = adx > dmi_threshold

Component 3: KPSS Stationarity Test

Complementary test to ADF that examines stationarity around trend components.

Pine Script®

// KPSS test implementation calculate_kpss_statistic(price_series, lookback, significance_level) => // Calculate mean and variance series_mean = calculate_mean(price_series, lookback) series_variance = calculate_variance(price_series, lookback) // Cumulative sum of deviations cumulative_sum = 0.0 cumsum_squared_sum = 0.0 for i = 0 to lookback - 1 deviation = price_series - series_mean cumulative_sum += deviation cumsum_squared_sum += math.pow(cumulative_sum, 2) // KPSS statistic kpss_stat = cumsum_squared_sum / (lookback * lookback * series_variance) // Compare against critical values critical_value = significance_level == 0.01 ? 0.739 : significance_level == 0.05 ? 0.463 : 0.347 is_trending = kpss_stat >= critical_value

Component 4: Choppiness Index

Measures market directionality using fractal dimension analysis of price movement.

Pine Script®

// Choppiness Index calculation calculate_choppiness(price_data, period) => // Find highest and lowest over period highest = price_data[0] lowest = price_data[0] true_range_sum = 0.0 for i = 0 to period - 1 if price_data > highest highest := price_data if price_data < lowest lowest := price_data // Accumulate true range if i > 0 true_range = calculate_true_range(price_data, i) true_range_sum += true_range // Choppiness calculation range_high_low = highest - lowest choppiness = 100 * math.log10(true_range_sum / range_high_low) / math.log10(period) // Trending if choppiness below threshold (typically 61.8) is_trending = choppiness < 61.8

Component 5: Hilbert Transform Analysis

Phase-based cycle detection and trend identification using mathematical signal processing.

Pine Script®

// Hilbert Transform trend detection calculate_hilbert_signal(price_data, smoothing_period, filter_period) => // Smooth the price data smoothed_price = calculate_moving_average(price_data, smoothing_period) // Calculate instantaneous phase components // Simplified implementation for demonstration instant_phase = smoothed_price delayed_phase = calculate_moving_average(price_data, filter_period) // Compare instantaneous vs delayed signals phase_difference = instant_phase - delayed_phase // Trending if instantaneous leads delayed is_trending = phase_difference > 0

Aggregate Regime Determination:

Pine Script®

// Combine all five components regime_calculation() => trending_count = 0 total_components = 0 // Test each enabled component if enable_adf and adf_signal == 1 trending_count += 1 if enable_adf total_components += 1 // Repeat for all five components... // Calculate trending proportion trending_proportion = trending_count / total_components // Market is trending if proportion above threshold regime_allows_trading = trending_proportion >= regime_threshold

The system only allows asset positions when the specified percentage of components indicate trending conditions. During choppy or mean-reverting periods, the system automatically positions in USD to preserve capital.

6. Dynamic Portfolio Weighting Framework

Six sophisticated allocation methodologies provide flexibility for different market conditions and risk preferences.

Weighting Method Implementations:

1. Equal Weight Distribution:

Pine Script®

// Simple equal allocation if weighting_mode == "Equal Weight" weight_per_asset = 1.0 / selection_count for i = 0 to selection_count - 1 array.push(weights, weight_per_asset)

2. Linear Dominance Scaling:

Pine Script®

// Linear scaling based on dominance scores if weighting_mode == "Linear Dominance" // Normalize scores to 0-1 range min_score = array.min(dominance_scores) max_score = array.max(dominance_scores) score_range = max_score - min_score total_weight = 0.0 for i = 0 to selection_count - 1 score = array.get(dominance_scores, i) normalized = (score - min_score) / score_range weight = 1.0 + normalized * concentration_factor array.push(weights, weight) total_weight += weight // Normalize to sum to 1.0 for i = 0 to selection_count - 1 current_weight = array.get(weights, i) array.set(weights, i, current_weight / total_weight)

3. Conviction Score (Exponential):

Pine Script®

// Exponential scaling for high conviction if weighting_mode == "Conviction Score" // Combine dominance score with DBBMD strength conviction_scores = [] for i = 0 to selection_count - 1 dominance = array.get(dominance_scores, i) dbbmd_strength = array.get(dbbmd_values, i) conviction = dominance + (dbbmd_strength - 50) / 25 array.push(conviction_scores, conviction) // Exponential weighting total_weight = 0.0 for i = 0 to selection_count - 1 conviction = array.get(conviction_scores, i) normalized = normalize_score(conviction) weight = math.pow(1 + normalized, concentration_factor) array.push(weights, weight) total_weight += weight // Final normalization normalize_weights(weights, total_weight)

Advanced Features:

Minimum Position Constraint: Prevents dust allocations below specified threshold
Concentration Factor: Adjustable parameter controlling weight distribution aggressiveness
Dominance Boost: Extra weight for assets exceeding specified dominance thresholds
Dynamic Rebalancing: Automatic weight recalculation on portfolio changes

7. Intelligent USD Management System

The system treats USD as a competing asset with its own dominance score, enabling sophisticated cash management.

USD Scoring Methodologies:

Smart Competition Mode (Recommended):

Pine Script®

f_calculate_smart_usd_dominance() => usd_wins = 0 // USD beats assets in downtrends or weak uptrends for i = 0 to active_count - 1 asset_state = get_asset_state(i) asset_dbbmd = get_asset_dbbmd(i) // USD dominates shorts and weak longs if asset_state == -1 or (asset_state == 1 and asset_dbbmd < long_threshold) usd_wins += 1 // Calculate Copeland-style score base_score = usd_wins - (active_count - usd_wins) // Boost during weak market conditions qualified_assets = count_qualified_long_assets() if qualified_assets <= active_count * 0.2 base_score := math.round(base_score * usd_boost_factor) base_score

Auto Short Count Mode:

Pine Script®

// USD dominance based on number of bearish assets usd_dominance = count_assets_in_short_state() // Apply boost during low activity if qualified_long_count <= active_count * 0.2 usd_dominance := usd_dominance * usd_boost_factor

Regime-Based USD Positioning:

When the five-component regime filter indicates unfavorable conditions, the system automatically overrides all asset signals and positions 100% in USD, protecting capital during choppy markets.

8. Multi-Asset Infrastructure & Data Management

The system maintains comprehensive data structures for up to 39 assets simultaneously.

Data Collection Framework:

Pine Script®

// Full OHLC data matrices (200 bars depth for performance) var matrix<float> open_data = matrix.new<float>(39, 200, na) var matrix<float> high_data = matrix.new<float>(39, 200, na) var matrix<float> low_data = matrix.new<float>(39, 200, na) var matrix<float> close_data = matrix.new<float>(39, 200, na) // Real-time data collection if barstate.isconfirmed for i = 0 to active_count - 1 ticker = array.get(assets, i) [o, h, l, c] = request.security(ticker, timeframe.period, [open[1], high[1], low[1], close[1]], lookahead=barmerge.lookahead_off) // Store in matrices with proper shifting matrix.set(open_data, i, 0, nz(o, 0)) matrix.set(high_data, i, 0, nz(h, 0)) matrix.set(low_data, i, 0, nz(l, 0)) matrix.set(close_data, i, 0, nz(c, 0))

Asset Configuration:

The system comes pre-configured with 39 major cryptocurrency pairs across multiple exchanges:

Major Pairs: BTC, ETH, XRP, SOL, DOGE, ADA, etc.
Exchange Coverage: Binance, KuCoin, MEXC for optimal liquidity
Configurable Count: Users can activate 2-39 assets based on preferences
Custom Tickers: All asset selections are user-modifiable

---

⚙️ COMPREHENSIVE CONFIGURATION GUIDE

Portfolio Management Settings

Maximum Portfolio Size (1-10):

Conservative (1-2): High concentration, captures strong trends
Balanced (3-5): Moderate diversification with trend focus
Diversified (6-10): Lower concentration, broader market exposure

Dominance Clarity Threshold (0.1-1.0):

Low (0.1-0.4): Prefers diversification, holds multiple assets frequently
Medium (0.5-0.7): Balanced approach, context-dependent allocation
High (0.8-1.0): Concentration-focused, single asset preference

Signal Generation Parameters

DBBMD Thresholds:

Pine Script®

// Standard configuration primary_long_threshold = 71 // Conservative: 75+, Aggressive: 65-70 primary_short_threshold = 33 // Conservative: 25-30, Aggressive: 35-40 // BB System parameters bb1_ma_len = 40 // Fast system: 20-50 bb1_sd_len = 65 // Stability: 50-80 bb2_ma_len = 8 // Trend: 60-100 bb2_sd_len = 66 // Sensitivity: 10-20

Risk Management Configuration

Alpha/Beta Filters:

Alpha Threshold: 0.0-2.0% (higher = more selective)
Beta Threshold: 0.5-2.0 (1.0+ for aggressive assets)
Calculation Periods: 20-50 bars (longer = more stable)

Regime Filter Settings:

Trending Threshold: 0.3-0.8 (higher = stricter trend requirements)
Component Lookbacks: 30-100 bars (balance responsiveness vs stability)
Enable/Disable: Individual component control for customization

---

📊 PERFORMANCE TRACKING & VISUALIZATION

Real-Time Dashboard Features

The compact dashboard provides essential information:

Current Holdings: Asset names and allocation percentages
Dominance Score: Current position's relative strength ranking
Active Assets: Qualified long signals vs total asset count
Returns: Total portfolio performance percentage
Maximum Drawdown: Peak-to-trough decline measurement
Trade Count: Total portfolio transitions executed
Regime Status: Current market condition assessment

Comprehensive Ranking Table

The left-side table displays detailed asset analysis:

Ranking Position: Numerical order by dominance score
Asset Symbol: Clean ticker identification with color coding
Dominance Score: Net wins minus losses in head-to-head comparisons
Win-Loss Record: Detailed breakdown of dominance relationships
DBBMD Reading: Current momentum percentage with threshold highlighting
Alpha/Beta Values: Fundamental analysis metrics when filters enabled
Portfolio Weight: Current allocation percentage in signal portfolio
Execution Status: Visual indicator of actual holdings vs signals

Visual Enhancement Features

Color-Coded Assets: 39 distinct colors for easy identification
Regime Background: Red tinting during unfavorable market conditions
Dynamic Equity Curve: Portfolio value plotted with position-based coloring
Status Indicators: Symbols showing execution vs signal states

---

🔍 ADVANCED TECHNICAL FEATURES

State Persistence System

The system maintains asset states across bars to prevent excessive switching:

Pine Script®

// State tracking for each asset and ratio combination var array<int> asset_states = array.new<int>(1560, 0) // 39 * 40 ratios // State changes only occur on confirmed threshold breaks if long_crossover and current_state != 1 current_state := 1 array.set(asset_states, asset_index, 1) else if short_crossover and current_state != -1 current_state := -1 array.set(asset_states, asset_index, -1)

Transaction Cost Integration

Realistic modeling of trading expenses:

Pine Script®

// Transaction cost calculation transaction_fee = 0.4 // Default 0.4% (fees + slippage) // Applied on portfolio transitions if should_execute_transition was_holding_assets = check_current_holdings() will_hold_assets = check_new_signals() // Charge fees for meaningful transitions if transaction_fee > 0 and (was_holding_assets or will_hold_assets) fee_amount = equity * (transaction_fee / 100) equity -= fee_amount total_fees += fee_amount

Dynamic Memory Management

Optimized data structures for performance:

200-Bar History: Sufficient for calculations while maintaining speed
Matrix Operations: Efficient storage and retrieval of multi-asset data
Array Recycling: Memory-conscious data handling for long-running backtests
Conditional Calculations: Skip unnecessary computations during initialization

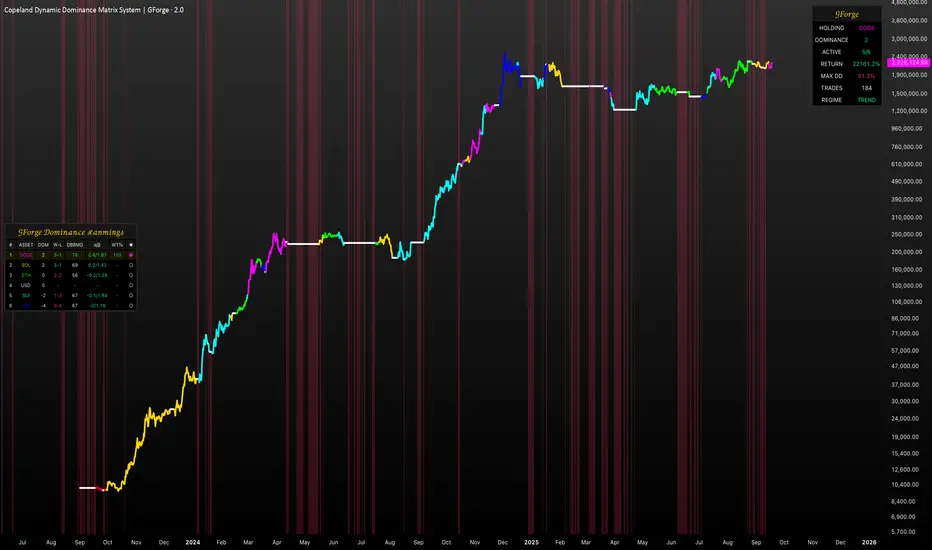

12H 30 assets portfolio

---

🚨 SYSTEM LIMITATIONS & TESTING STATUS

CURRENT DEVELOPMENT PHASE: ACTIVE TESTING & OPTIMIZATION

This system represents cutting-edge algorithmic trading technology but remains in continuous development. Key considerations:

Known Limitations:
Requires significant computational resources for 39-asset analysis
Performance varies significantly across different market conditions
Complex parameter interactions may require extensive optimization
Slippage and liquidity constraints not fully modeled for all assets
No consideration for market impact in large position sizes

Areas Under Active Development:
Enhanced regime detection algorithms
Improved transaction cost modeling
Additional portfolio weighting methodologies
Machine learning integration for parameter optimization
Cross-timeframe analysis capabilities

---

🔒 ANTI-REPAINTING ARCHITECTURE & LIVE TRADING READINESS

One of the most critical aspects of any trading system is ensuring that signals and calculations are based on confirmed, historical data rather than current bar information that can change throughout the trading session. This system implements comprehensive anti-repainting measures to ensure 100% reliability for live trading.

The Repainting Problem in Trading Systems

Repainting occurs when an indicator uses current, unconfirmed bar data in its calculations, causing:

False Historical Signals: Backtests appear better than reality because calculations change as bars develop
Live Trading Failures: Signals that looked profitable in testing fail when deployed in real markets
Inconsistent Results: Different results when running the same indicator at different times during a trading session
Misleading Performance: Inflated win rates and returns that cannot be replicated in practice

GForge Anti-Repainting Implementation

This system eliminates repainting through multiple technical safeguards:

1. Historical Data Usage for All Calculations

Pine Script®

// CRITICAL: All calculations use PREVIOUS bar data (note the [1] offset) [o1, h1, l1, c1, c0] = request.security(ticker, timeframe.period, [open[1], high[1], low[1], close[1], close], lookahead=barmerge.lookahead_off) // Store confirmed previous bar OHLC for calculations matrix.set(open_data, i, 0, nz(o1, 0)) // Previous bar open matrix.set(high_data, i, 0, nz(h1, 0)) // Previous bar high matrix.set(low_data, i, 0, nz(l1, 0)) // Previous bar low matrix.set(close_data, i, 0, nz(c1, 0)) // Previous bar close // Current bar close only for visualization matrix.set(current_prices, i, 0, nz(c0, 0)) // Live price display

2. Confirmed Bar State Processing

Pine Script®

// Only process data when bars are confirmed and closed if barstate.isconfirmed // All signal generation and portfolio decisions occur here // using only historical, unchanging data // Shift historical data arrays for i = 0 to active_count - 1 for bar = math.min(data_bars, 199) to 1 // Move confirmed data through historical matrices old_data = matrix.get(close_data, i, bar - 1) matrix.set(close_data, i, bar, old_data) // Process new confirmed bar data calculate_all_signals_and_dominance()

3. Lookahead Prevention

Pine Script®

// Explicit lookahead prevention in all security calls request.security(ticker, timeframe.period, expression, lookahead=barmerge.lookahead_off) // This ensures no future data can influence current calculations // Essential for maintaining signal integrity across all timeframes

4. State Persistence with Historical Validation

Pine Script®

// Asset states only change based on confirmed threshold breaks // using historical data that cannot change var array<int> asset_states = array.new<int>(1560, 0) // State changes use only confirmed, previous bar calculations if barstate.isconfirmed [dbbmd_value, binary_state, upper_state, lower_state] = f_calculate_enhanced_dbbmd(confirmed_price_array, ...) // Only update states after bar confirmation if long_crossover_confirmed and current_state != 1 current_state := 1 array.set(asset_states, asset_index, 1)

Live Trading vs. Backtesting Consistency

The system's architecture ensures identical behavior in both environments:

Backtesting Mode:

Uses historical [1] offset data for all calculations
Processes confirmed bars with `barstate.isconfirmed`
Maintains identical signal generation logic
No access to future information

Live Trading Mode:

Uses same historical [1] offset data structure
Waits for bar confirmation before signal updates
Identical mathematical calculations and thresholds
Real-time price display without affecting signals

Technical Implementation Details

Data Collection Timing

Pine Script®

// Example of proper data collection timing if barstate.isconfirmed // Wait for bar to close // Collect PREVIOUS bar's confirmed OHLC data for i = 0 to active_count - 1 ticker = array.get(assets, i) // Get confirmed previous bar data (note [1] offset) [prev_open, prev_high, prev_low, prev_close, current_close] = request.security(ticker, timeframe.period, [open[1], high[1], low[1], close[1], close], lookahead=barmerge.lookahead_off) // ALL calculations use prev_* values // current_close only for real-time display portfolio_calculations_use_previous_bar_data()

Signal Generation Process

Pine Script®

// Signal generation workflow (simplified) if barstate.isconfirmed and data_bars >= minimum_required_bars // Step 1: Calculate DBBMD using historical price arrays for i = 0 to active_count - 1 historical_prices = get_confirmed_price_history(i) // Uses [1] offset data [dbbmd, state] = calculate_dbbmd(historical_prices) update_asset_state(i, state) // Step 2: Build dominance matrix using confirmed data calculate_dominance_relationships() // All historical data // Step 3: Generate portfolio signals new_portfolio = generate_target_portfolio() // Based on confirmed calculations // Step 4: Compare with previous signals for changes if portfolio_signals_changed() execute_portfolio_transition()

Verification Methods for Users

Users can verify the anti-repainting behavior through several methods:

1. Historical Replay Test

Run the indicator on historical data
Note signal timing and portfolio changes
Replay the same period - signals should be identical
No retroactive changes in historical signals

2. Intraday Consistency Check

Load indicator during active trading session
Observe that previous day's signals remain unchanged
Only current day's final bar should show potential signal changes
Refresh indicator - historical signals should be identical

Live Trading Deployment Considerations

Data Quality Assurance

Exchange Connectivity: Ensure reliable data feeds for all 39 assets
Missing Data Handling: System includes safeguards for data gaps
Price Validation: Automatic filtering of obvious price errors
Timeframe Synchronization: All assets synchronized to same bar timing

Performance Impact of Anti-Repainting Measures

The robust anti-repainting implementation requires additional computational resources:

Memory Usage: 200-bar historical data storage for 39 assets
Processing Delay: Signals update only after bar confirmation
Calculation Overhead: Multiple historical data validations
Alert Timing: Slight delay compared to current-bar indicators

However, these trade-offs are essential for reliable live trading performance and accurate backtesting results.

Critical: Equity Curve Anti-Repainting Architecture

The most sophisticated aspect of this system's anti-repainting design is the temporal separation between signal generation and performance calculation. This creates a realistic trading simulation that perfectly matches live trading execution.

The Timing Sequence

Pine Script®

// STEP 1: Store what we HELD during the current bar (for performance calc) if barstate.isconfirmed // Record positions that were active during this bar array.clear(held_portfolio) array.clear(held_weights) for i = 0 to array.size(execution_portfolio) - 1 array.push(held_portfolio, array.get(execution_portfolio, i)) array.push(held_weights, array.get(execution_weights, i)) // STEP 2: Calculate performance based on what we HELD portfolio_return = 0.0 for i = 0 to array.size(held_portfolio) - 1 held_asset = array.get(held_portfolio, i) held_weight = array.get(held_weights, i) // Performance from current_price vs reference_price // This is what we ACTUALLY earned during this bar if held_asset != "USD" current_price = get_current_price(held_asset) // End of bar reference_price = get_reference_price(held_asset) // Start of bar asset_return = (current_price - reference_price) / reference_price portfolio_return += asset_return * held_weight // STEP 3: Apply return to equity (realistic timing) equity := equity * (1 + portfolio_return) // STEP 4: Generate NEW signals for NEXT period (using confirmed data) [new_signal_portfolio, new_signal_weights] = f_generate_target_portfolio() // STEP 5: Execute transitions if signals changed if signal_changed // Update execution_portfolio for NEXT bar array.clear(execution_portfolio) array.clear(execution_weights) for i = 0 to array.size(new_signal_portfolio) - 1 array.push(execution_portfolio, array.get(new_signal_portfolio, i)) array.push(execution_weights, array.get(new_signal_weights, i))

Why This Prevents Equity Curve Repainting

Performance Attribution: Returns are calculated based on positions that were **actually held** during each bar, not future signals
Signal Timing: New signals are generated **after** performance calculation, affecting only **future** bars
Realistic Execution: Mimics real trading where you earn returns on current positions while planning future moves
No Retroactive Changes: Once a bar closes, its performance contribution to equity is permanent and unchangeable

The One-Bar Offset Mechanism

This system implements a critical one-bar timing offset:

Pine Script®

// Bar N: Performance Calculation // ================================ // 1. Calculate returns on positions held during Bar N // 2. Update equity based on actual holdings during Bar N // 3. Plot equity point for Bar N (based on what we HELD) // Bar N: Signal Generation // ======================== // 4. Generate signals for Bar N+1 (using confirmed Bar N data) // 5. Send alerts for what will be held during Bar N+1 // 6. Update execution_portfolio for Bar N+1 // Bar N+1: The Cycle Continues // ============================= // 1. Performance calculated on positions from Bar N signals // 2. New signals generated for Bar N+2

Alert System Timing

The alert system reflects this sophisticated timing:

Transaction Cost Realism

Even transaction costs follow realistic timing:

Pine Script®

// Fees applied when transitioning between different portfolios if should_execute_transition // Charge fees BEFORE taking new positions (realistic timing) if transaction_fee > 0 fee_amount = equity * (transaction_fee / 100) equity -= fee_amount // Immediate cost impact total_fees += fee_amount // THEN update to new portfolio update_execution_portfolio(new_signals) transitions += 1 // Fees reduce equity immediately, affecting all future calculations // This matches real trading where fees are deducted upon execution

LIVE TRADING CERTIFICATION:

This system has been specifically designed and tested for live trading deployment. The comprehensive anti-repainting measures ensure that:

Backtesting results accurately represent real trading potential
Signals are generated using only confirmed, historical data
No retroactive changes can occur to previously generated signals
Portfolio transitions are based on reliable, unchanging calculations
Performance metrics reflect realistic trading outcomes including proper timing

Users can deploy this system with confidence that live trading results will closely match backtesting performance, subject to normal market execution factors such as slippage and liquidity.

---

⚡ ALERT SYSTEM & AUTOMATION

The system provides comprehensive alerting for automation and monitoring:

Available Alert Conditions

Portfolio Signal Change: Triggered when new portfolio composition is generated
Regime Override Active: Alerts when market regime forces USD positioning
Individual Asset Signals: Can be configured for specific asset transitions
Performance Thresholds: Drawdown or return-based notifications

---

📈 BACKTESTING & PERFORMANCE ANALYSIS

8Comprehensive Metrics Tracking

The system maintains detailed performance statistics:

Equity Curve: Real-time portfolio value progression
Returns Calculation: Total and annualized performance metrics
Drawdown Analysis: Peak-to-trough decline measurements
Transaction Counting: Portfolio transition frequency
Fee Tracking: Cumulative transaction cost impact
Win Rate Analysis: Success rate of position changes

Backtesting Configuration

Pine Script®

// Backtesting parameters initial_capital = 10000.0 // Starting capital use_custom_start = true // Enable specific start date custom_start = timestamp("2023-09-01") // Backtest beginning transaction_fee = 0.4 // Combined fees and slippage % // Performance calculation total_return = (equity - initial_capital) / initial_capital * 100 current_drawdown = (peak_equity - equity) / peak_equity * 100

---

🔧 TROUBLESHOOTING & OPTIMIZATION

Common Configuration Issues

Insufficient Data: Ensure 100+ bars available before start date
[*}Not Compiling: Go on an asset's price chart with 2 or 3 years of data to
make the system compile or just simply reapply the indicator again
Too Many Assets: Reduce active count if experiencing timeouts
Regime Filter Too Strict: Lower trending threshold if always in USD
Excessive Switching: Increase MD multiplier or adjust thresholds

---

💡 USER FEEDBACK & ENHANCEMENT REQUESTS

The continuous evolution of this system depends heavily on user experience and community feedback. Your insights will help motivate me for new improvements and new feature developments.

---

⚖️ FINAL COMPREHENSIVE RISK DISCLAIMER

TRADING INVOLVES SUBSTANTIAL RISK OF LOSS

This indicator is a sophisticated analytical tool designed for educational and research purposes. Important warnings and considerations:

System Limitations:
No algorithmic system can guarantee profitable outcomes
Complex systems may fail in unexpected ways during extreme market events
Historical backtesting does not account for all real-world trading challenges
Slippage, liquidity constraints, and market impact can significantly affect results
System parameters require careful optimization and ongoing monitoring

~~The creator and distributor of this indicator assume no liability for any financial losses, system failures, or adverse outcomes resulting from its use.~~ This tool is provided "as is" without any warranties, express or implied.

By using this indicator, you acknowledge that you have read, understood, and agreed to assume all risks associated with algorithmic trading and cryptocurrency investments.
