Jitendra: MTF AIO Technical Indicators with Trend ▲▼

84
🧠 Indicator Name:


Jitendra: Multi Timeframe All In One Technical Indicators with Trend ▲▼

📌 Purpose:

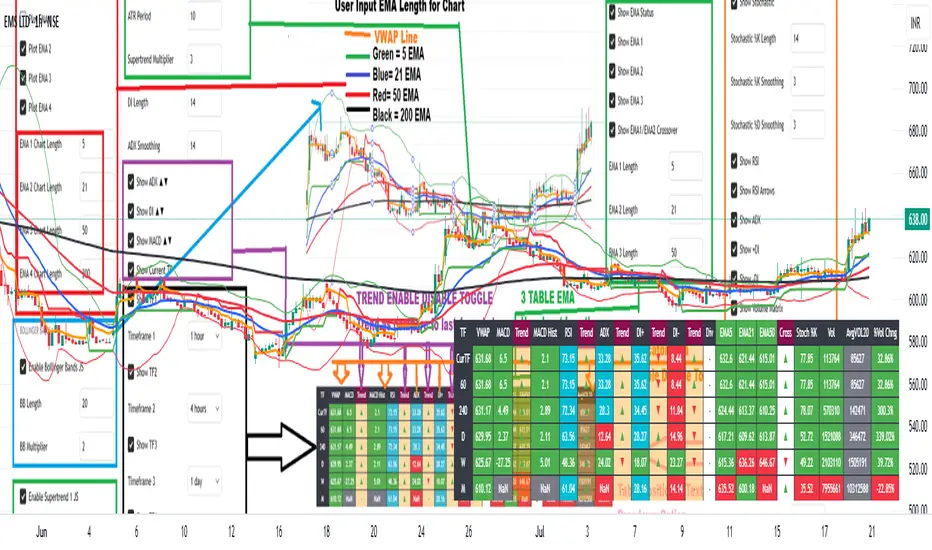

A multi-timeframe technical analysis dashboard that visualizes a wide set of technical indicators in a table, supporting up to 6 timeframes (current + 5 custom), along with chart plots of EMA, VWAP, Bollinger Bands, and Supertrend

✅ Use Cases
Multi-timeframe swing or intraday trading
Quick decision dashboard for:
Momentum
Volume strength
Trend direction
Overbought/oversold detection
EMA crossovers and trend filters

How to Use & Change Setting

Complete Details of every Toggle

https://drive.google.com/file/d/1oT0CphoC1HdF5q7JhAR27iiDBztneFxc/view?usp=drive_link

==========================================
📊 Logic & Presentation
Uses request.security() to fetch indicator values for each selected timeframe.


Calculates RSI/ADX/DI/MACD/Stochastic values per TF.

Plots a table dynamically with headers and rows built at runtime.

Applies conditional coloring to indicate direction/momentum visually.

Uses arrays and string splitting to manage multiple EMA values per timeframe.

Super efficient get_vals() and fill_row() modular functions.


📋 Key Features Overview:

1. Chart Plots (Overlay)
VWAP line

4 EMAs (custom lengths, color-coded)

2 Supertrend lines with different ATR multipliers and lengths

Bollinger Bands with configurable length and deviation

2. Multi-Timeframe Table
A dashboard showing indicator values across:

Current TF
Custom TF1 → TF5 (e.g., 1H, 4H, D, W, M)

3. Indicators Displayed in Table (Toggle ON/OFF)
VWAP position (Above/Below)

MACD (value + trend arrow + optional histogram)

RSI (value + trend arrow)

ADX and DI+ / DI- (values + trend arrows)

Stochastic K value

EMA Status (EMA1, EMA2, EMA3 with up/down based on price)

EMA Crossovers (symbol ▲▼ for EMA1 vs EMA2)

RSI Divergence (Regular + Hidden: Bullish/Bearish)

Volume Matrix:

Raw Volume

20 SMA of Volume

Volume % Change


4. Divergence Detection (RSI)
Uses pivot highs/lows to detect:

Bullish/Bearish divergence

Hidden Bullish/Bearish divergence

5. Color Coding
Trend direction is visualized using:

Green (Bullish), Red (Bearish), Gray (Neutral)

Dynamic table cell background for easy interpretation

6. Customizations & UI
Table Position: 9 options (top/bottom/center, left/right)

Text size options: tiny to huge

Modular toggle system: selectively enable indicators and TFs

⚙️ Inputs (Grouped by Functionality)
🔹 Moving Averages / VWAP / Bollinger Bands
Show/hide toggles

Custom EMA lengths (5, 21, 50, 200)

Bollinger Band length and deviation

🔹 Supertrend Settings
Two independent Supertrend inputs

ATR Period & Multiplier

🔹 RSI Divergence Settings
Pivot lookback bars for left/right swing point detection

🔹 Stochastic
%K Length, %K & %D smoothing

🔹 MACD
Histogram and trend arrow toggle

🔹 ADX/DI
ADX Smoothing and DI period

🔹 Volume

Toggles for:
Raw Volume
Volume SMA (20)
Volume % Rise


🎨 Color Coding Logic Summary
The script uses dynamic background and text colors in the table and plots to highlight trend direction, strength, and conditions visually:

RSI Coloring

val > 60 → Aqua (Strong / Overbought)
val 40–60 → Green (Neutral/Healthy)
val < 40 → Red (Weak / Oversold)


ADX / +DI / -DI Coloring
val > 25 → Aqua (Strong trend)
val 18–25 → Green (Moderate trend)
val < 18 → Red (Weak trend)


VWAP Position
Close > VWAP → Green (Bullish)
Close < VWAP → Red (Bearish)
Close = VWAP → Gray (Neutral)


Direction Arrows
▲ Green (Bullish) ▼ Red (Bearish)

EMA Background Color
Close > EMA → Green background (Price above EMA)
Close < EMA → Red background (Price below EMA)


EMA Cross Symbol
EMA1 > EMA2 → ▲ Green
EMA1 < EMA2 → ▼ Red
Equal → - Gray



Stochastic %K Coloring

K > D → Green (Bullish crossover)
K < D → Red (Bearish crossover)
K = D → Gray (Neutral)


📊 Volume % Change Coloring


volPct > 0 → Green (Increased volume)
volPct < 0 → Red (Decreased volume)
volPct = 0 → Gray




Thanks Happy Trading / Comment for Any Query or More Information about Setting
