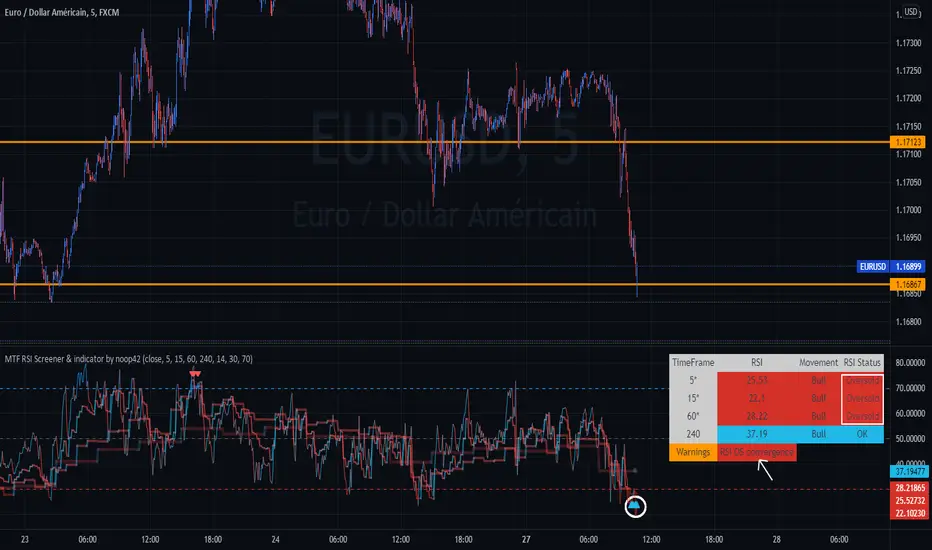

Since my previous x4 multi timeframes Stochastic RSI script seems to have been appreciated, I decided to make a 2nd version of this tool which focuses on the RSI indicator only.
Default parameters
Details
Note The Stochastic RSI version of this tool is available here
Default parameters
- RSI length : 14
- Timeframes: 5, 15, 60, 240
- OB/OS zones : 70 & 30
- Repaint mode: enabled
- Display lines: enabled
- Display screener: enabled
- Convergence warnings: timeframes 1, 2 & 3
Details
- Repaint mode : Disabling it makes the indicator wait for the current candle to close before to change its value
- Display lines: Allows you to disable RSI lines drawings, in order to move the screener on your main chart for example.
- Display screener: Allows you to disable the screener, in order to use RSI lines only
- OB/OS convergences warnings : Allows you to select which timeframe(s) must be taken into consideration for convergence signals (Selected timeframes can be distinguished in the screener, followed by a * char in the timeframes column)
Note The Stochastic RSI version of this tool is available here
