WaveTrend [LazyBear] vX by DGT

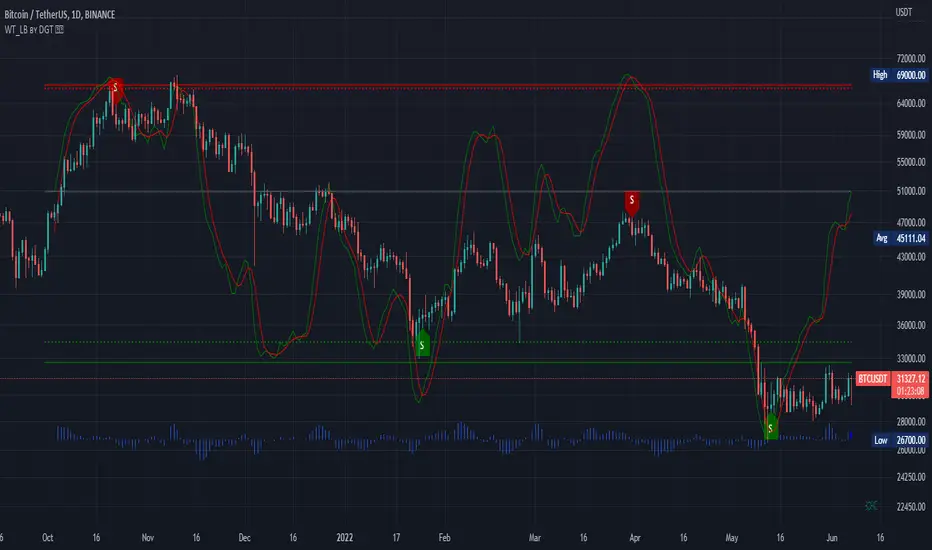

DGT interpreted version of LazyBear's WaveTrend, visualizing on Price Chart

Original Author : LazyBear

Crosses above or below threshold are emphasized with bigger labels
- crosses above threshold : probable short indications with a bigger label and relativly small label for probable long indications
- crosses below threshold : probable long indications with a bigger label and relativly small label for probable short indications
All rest crosses within threshold boundaries with relatively small labels for both long and short probable indications

發布通知:

small update : alert condition added

發布通知:

update thanks to @sandyrindal suggestions, special thanks to him

added ability to change the signal length
added ability to compare with other symbols, can be symbols that are directly correlated or inversely correlated symbols

Here is the modified code for the ones who enjoy the WaveTrend Oscillator on separate pane

//@version=4
//@author LazyBear, modified by dgtrd

study(title="WaveTrend [LazyBear]", shorttitle="WT_LB vX ʙʏ DGT ☼☾")

n1 = input(10, "Length : Channel ", inline = "LEN")
n2 = input(21, "Average", inline = "LEN")
s1 = input(4 , "Signal Length")

obLevel1 = input( 60, "Over Bought Level 1", inline = "OB")
obLevel2 = input( 53, "Level 2"            , inline = "OB")
osLevel1 = input(-60, "Over Sold Level 1"  , inline = "OS")
osLevel2 = input(-53, "Level 2"            , inline = "OS")

f_getWT(s) =>
    ap = s
    esa = ema(ap, n1)
    d = ema(abs(ap - esa), n1)
    ci = (ap - esa) / (0.015 * d)
    tci = ema(ci, n2)

    wt1 = tci
    wt2 = sma(wt1, s1)

    [wt1, wt2]

plot(0       , color=color.gray )
plot(obLevel1, color=color.red  )
plot(osLevel1, color=color.green)
plot(obLevel2, color=color.red  , style=3)
plot(osLevel2, color=color.green, style=3)

[wt1, wt2] = f_getWT(hlc3)

plot(wt1    , color=color.green)
plot(wt2    , color=color.red  , style=3)
plot(wt1-wt2, color=color.blue , style=plot.style_area, transp=80)

compare  = input(false, "Compare with Symbol", inline = "CPR")
symbol   = input("CBOE:VIX"        , "", type=input.symbol, inline = "CPR")
extSrc   = security (symbol , timeframe.period, hlc3, barmerge.gaps_off, barmerge.lookahead_on)
[wt1x, wt2x] = f_getWT(extSrc)

plot(compare ? wt1x      : na, color=color.aqua)
plot(compare ? wt2x      : na, color=color.yellow, style=3)
plot(compare ? wt1x-wt2x : na, color=color.olive, style=plot.style_area, transp=80)

發布通知:

added a label to display current values of the wavetrend and signal level

發布通知:

Update
* overlay wavetrand display addition, better interpretation
* enhanced signal customizations
