ZigzagMethods

2023年2月16日

Library "ZigzagMethods"

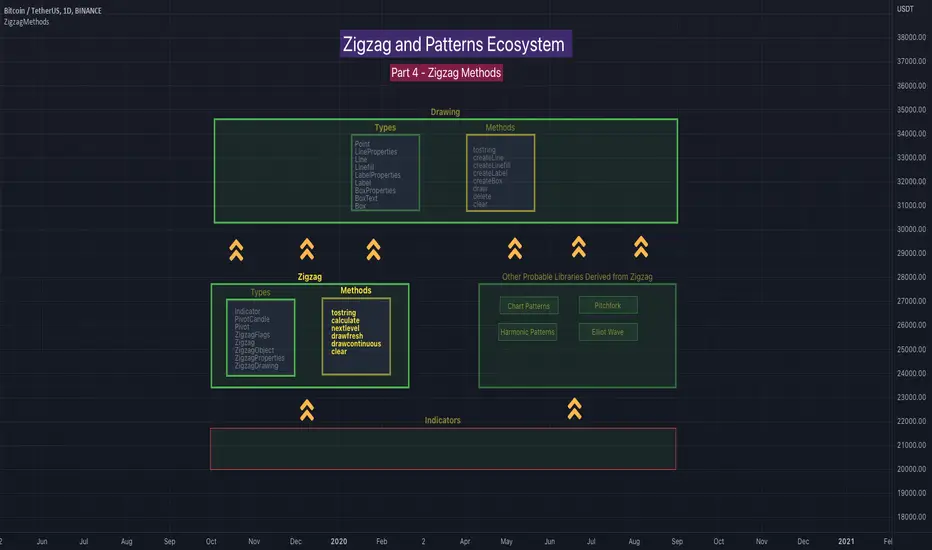

Object oriented implementation of Zigzag methods. Please refer to ZigzagTypes library for User defined types used in this library

tostring(this, sortKeys, sortOrder, includeKeys)
  Converts ZigzagTypes/Pivot object to string representation
  Parameters:
    this: ZigzagTypes/Pivot
    sortKeys: If set to true, string output is sorted by keys.
    sortOrder: Applicable only if sortKeys is set to true. Positive number will sort them in ascending order whreas negative numer will sort them in descending order. Passing 0 will not sort the keys
    includeKeys: Array of string containing selective keys. Optional parmaeter. If not provided, all the keys are considered
  Returns: string representation of ZigzagTypes/Pivot

tostring(this, sortKeys, sortOrder, includeKeys)
  Converts Array of Pivot objects to string representation
  Parameters:
    this: Pivot object array
    sortKeys: If set to true, string output is sorted by keys.
    sortOrder: Applicable only if sortKeys is set to true. Positive number will sort them in ascending order whreas negative numer will sort them in descending order. Passing 0 will not sort the keys
    includeKeys: Array of string containing selective keys. Optional parmaeter. If not provided, all the keys are considered
  Returns: string representation of Pivot object array

tostring(this)
  Converts ZigzagFlags object to string representation
  Parameters:
    this: ZigzagFlags object
  Returns: string representation of ZigzagFlags

tostring(this, sortKeys, sortOrder, includeKeys)
  Converts ZigzagTypes/Zigzag object to string representation
  Parameters:
    this: ZigzagTypes/Zigzagobject
    sortKeys: If set to true, string output is sorted by keys.
    sortOrder: Applicable only if sortKeys is set to true. Positive number will sort them in ascending order whreas negative numer will sort them in descending order. Passing 0 will not sort the keys
    includeKeys: Array of string containing selective keys. Optional parmaeter. If not provided, all the keys are considered
  Returns: string representation of ZigzagTypes/Zigzag

calculate(this, ohlc, indicators, indicatorNames)
  Calculate zigzag based on input values and indicator values
  Parameters:
    this: Zigzag object
    ohlc: Array containing OHLC values. Can also have custom values for which zigzag to be calculated
    indicators: Array of indicator values
    indicatorNames: Array of indicator names for which values are present. Size of indicators array should be equal to that of indicatorNames
  Returns: current Zigzag object

calculate(this)
  Calculate zigzag based on properties embedded within Zigzag object
  Parameters:
    this: Zigzag object
  Returns: current Zigzag object

nextlevel(this)
  Calculate Next Level Zigzag based on the current calculated zigzag object
  Parameters:
    this: Zigzag object
  Returns: Next Level Zigzag object

clear(this)
  Clears zigzag drawings array
  Parameters:
    this: array<ZigzagDrawing>
  Returns: void

drawfresh(this)
  draws fresh zigzag based on properties embedded in ZigzagDrawing object
  Parameters:
    this: ZigzagDrawing object
  Returns: ZigzagDrawing object

drawcontinuous(this)
  draws zigzag based on the zigzagmatrix input
  Parameters:
    this: ZigzagDrawing object
  Returns: [array<line> zigzaglines, array<label> zigzaglabels]

2023年3月8日

發行說明

v2

Updates to auto calculate zigzag in Drawing methods.

Updated:
drawfresh(this, ohlc, indicators, indicatorNames)
  draws fresh zigzag based on properties embedded in ZigzagDrawing object
  Parameters:
    this: ZigzagDrawing object
    ohlc: values on which the zigzag needs to be calculated and drawn. If not set will use regular OHLC
    indicators: Array of indicator values
    indicatorNames: Array of indicator names for which values are present. Size of indicators array should be equal to that of indicatorNames
  Returns: ZigzagDrawing object

drawcontinuous(this, ohlc, indicators, indicatorNames)
  draws zigzag based on the zigzagmatrix input
  Parameters:
    this: ZigzagDrawing object
    ohlc: values on which the zigzag needs to be calculated and drawn. If not set will use regular OHLC
    indicators: Array of indicator values
    indicatorNames: Array of indicator names for which values are present. Size of indicators array should be equal to that of indicatorNames
  Returns: [array<line> zigzaglines, array<label> zigzaglabels]

2023年3月13日

發行說明

v3

Added:
drawplain(this)
  draws fresh zigzag based on properties embedded in ZigzagDrawing object without trying to calculate
  Parameters:
    this: ZigzagDrawing object
  Returns: ZigzagDrawing object

2023年4月29日

發行說明

v4

Fixed issues highlighted by moebius1977

2023年5月7日

發行說明

v5

Updated:
method tostring(this, sortKeys, sortOrder, includeKeys)
  Converts ZigzagTypes/Zigzag object to string representation
  Namespace types: Objects.Zigzag
  Parameters:
    this (Zigzag type from HeWhoMustNotBeNamed/ZigzagTypes/4): ZigzagTypes/Zigzagobject
    sortKeys (bool): If set to true, string output is sorted by keys.
    sortOrder (int): Applicable only if sortKeys is set to true. Positive number will sort them in ascending order whreas negative numer will sort them in descending order. Passing 0 will not sort the keys
    includeKeys (string[]): Array of string containing selective keys. Optional parmaeter. If not provided, all the keys are considered
  Returns: string representation of ZigzagTypes/Zigzag

method calculate(this)
  Calculate zigzag based on properties embedded within Zigzag object
  Namespace types: Objects.Zigzag
  Parameters:
    this (Zigzag type from HeWhoMustNotBeNamed/ZigzagTypes/4): Zigzag object
  Returns: current Zigzag object

method nextlevel(this)
  Calculate Next Level Zigzag based on the current calculated zigzag object
  Namespace types: Objects.Zigzag
  Parameters:
    this (Zigzag type from HeWhoMustNotBeNamed/ZigzagTypes/4): Zigzag object
  Returns: Next Level Zigzag object

method clear(this)
  Clears zigzag drawings array
  Namespace types: Objects.ZigzagDrawing[]
  Parameters:
    this (ZigzagDrawing[] type from HeWhoMustNotBeNamed/ZigzagTypes/4): array<ZigzagDrawing>
  Returns: void

method drawplain(this)
  draws fresh zigzag based on properties embedded in ZigzagDrawing object without trying to calculate
  Namespace types: Objects.ZigzagDrawing
  Parameters:
    this (ZigzagDrawing type from HeWhoMustNotBeNamed/ZigzagTypes/4): ZigzagDrawing object
  Returns: ZigzagDrawing object

method drawfresh(this, ohlc, indicators, indicatorNames)
  draws fresh zigzag based on properties embedded in ZigzagDrawing object
  Namespace types: Objects.ZigzagDrawing
  Parameters:
    this (ZigzagDrawing type from HeWhoMustNotBeNamed/ZigzagTypes/4): ZigzagDrawing object
    ohlc (float[]): values on which the zigzag needs to be calculated and drawn. If not set will use regular OHLC
    indicators (matrix<float>): Array of indicator values
    indicatorNames (string[]): Array of indicator names for which values are present. Size of indicators array should be equal to that of indicatorNames
  Returns: ZigzagDrawing object

method drawcontinuous(this, ohlc, indicators, indicatorNames)
  draws zigzag based on the zigzagmatrix input
  Namespace types: Objects.ZigzagDrawing
  Parameters:
    this (ZigzagDrawing type from HeWhoMustNotBeNamed/ZigzagTypes/4): ZigzagDrawing object
    ohlc (float[]): values on which the zigzag needs to be calculated and drawn. If not set will use regular OHLC
    indicators (matrix<float>): Array of indicator values
    indicatorNames (string[]): Array of indicator names for which values are present. Size of indicators array should be equal to that of indicatorNames
  Returns: [array<line> zigzaglines, array<label> zigzaglabels]

2023年5月15日

發行說明

v6

Updated:
method tostring(this, sortKeys, sortOrder, includeKeys)
  Converts ZigzagTypes/Zigzag object to string representation
  Namespace types: Objects.Zigzag
  Parameters:
    this (Zigzag type from HeWhoMustNotBeNamed/ZigzagTypes/5): ZigzagTypes/Zigzagobject
    sortKeys (bool): If set to true, string output is sorted by keys.
    sortOrder (int): Applicable only if sortKeys is set to true. Positive number will sort them in ascending order whreas negative numer will sort them in descending order. Passing 0 will not sort the keys
    includeKeys (string[]): Array of string containing selective keys. Optional parmaeter. If not provided, all the keys are considered
  Returns: string representation of ZigzagTypes/Zigzag

method calculate(this)
  Calculate zigzag based on properties embedded within Zigzag object
  Namespace types: Objects.Zigzag
  Parameters:
    this (Zigzag type from HeWhoMustNotBeNamed/ZigzagTypes/5): Zigzag object
  Returns: current Zigzag object

method nextlevel(this)
  Calculate Next Level Zigzag based on the current calculated zigzag object
  Namespace types: Objects.Zigzag
  Parameters:
    this (Zigzag type from HeWhoMustNotBeNamed/ZigzagTypes/5): Zigzag object
  Returns: Next Level Zigzag object

method clear(this)
  Clears zigzag drawings array
  Namespace types: Objects.ZigzagDrawing[]
  Parameters:
    this (ZigzagDrawing[] type from HeWhoMustNotBeNamed/ZigzagTypes/5): array<ZigzagDrawing>
  Returns: void

method drawplain(this)
  draws fresh zigzag based on properties embedded in ZigzagDrawing object without trying to calculate
  Namespace types: Objects.ZigzagDrawing
  Parameters:
    this (ZigzagDrawing type from HeWhoMustNotBeNamed/ZigzagTypes/5): ZigzagDrawing object
  Returns: ZigzagDrawing object

method drawfresh(this, ohlc, indicators, indicatorNames)
  draws fresh zigzag based on properties embedded in ZigzagDrawing object
  Namespace types: Objects.ZigzagDrawing
  Parameters:
    this (ZigzagDrawing type from HeWhoMustNotBeNamed/ZigzagTypes/5): ZigzagDrawing object
    ohlc (float[]): values on which the zigzag needs to be calculated and drawn. If not set will use regular OHLC
    indicators (matrix<float>): Array of indicator values
    indicatorNames (string[]): Array of indicator names for which values are present. Size of indicators array should be equal to that of indicatorNames
  Returns: ZigzagDrawing object

method drawcontinuous(this, ohlc, indicators, indicatorNames)
  draws zigzag based on the zigzagmatrix input
  Namespace types: Objects.ZigzagDrawing
  Parameters:
    this (ZigzagDrawing type from HeWhoMustNotBeNamed/ZigzagTypes/5): ZigzagDrawing object
    ohlc (float[]): values on which the zigzag needs to be calculated and drawn. If not set will use regular OHLC
    indicators (matrix<float>): Array of indicator values
    indicatorNames (string[]): Array of indicator names for which values are present. Size of indicators array should be equal to that of indicatorNames
  Returns: [array<line> zigzaglines, array<label> zigzaglabels]
