PINE LIBRARY
MTF_Drawings
Library 'MTF_Drawings'

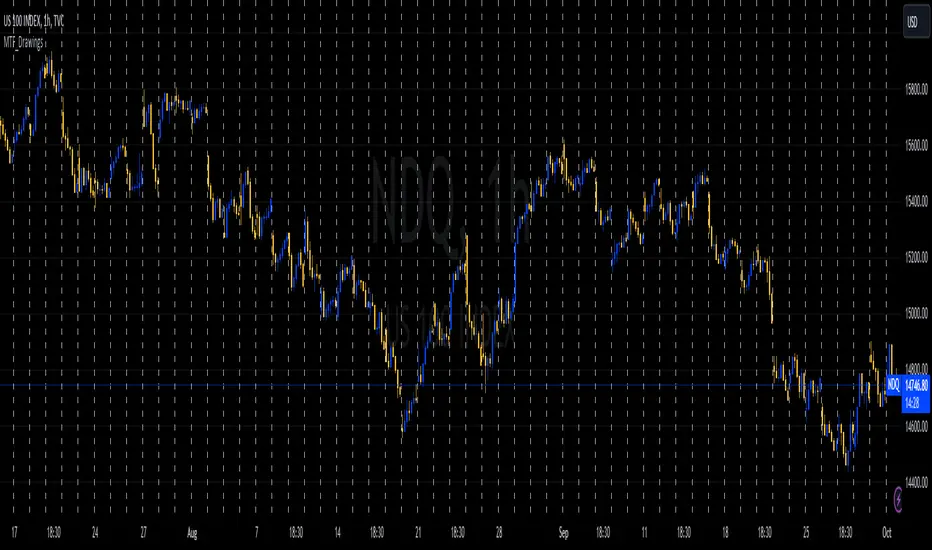

This library helps with drawing indicators and candle charts on all timeframes.
FEATURES
CATEGORIES
The functions are named in a way that indicates they purpose:
USAGE
Import the library into your script.
Before using any {Draw} function it is necessary to use a {Populate} function.
Choose the appropriate one based on the category, provide the necessary arguments, and then use the {Draw} function, forwarding the arrays generated by the {Populate} function.
This doesn't apply to {Draw_Lines}, {LineFill}, or {Barcolor} functions.
EXAMPLE
FUNCTION LIST
HTF_Candle(BarsBack, BodyBear, BodyBull, BordersBear, BordersBull, WickBear, WickBull, LineStyle, BoxStyle, LineWidth, HTF_Open, HTF_High, HTF_Low, HTF_Close, HTF_Bar_Index)
Populates two arrays with drawing data of the HTF candles.
Parameters:
BarsBack (int): Bars number to display.
BodyBear (color): Candle body bear color.
BodyBull (color): Candle body bull color.
BordersBear (color): Candle border bear color.
BordersBull (color): Candle border bull color.
WickBear (color): Candle wick bear color.
WickBull (color): Candle wick bull color.
LineStyle (string): Wick style (Solid-Dotted-Dashed).
BoxStyle (string): Border style (Solid-Dotted-Dashed).
LineWidth (int): Wick width.
HTF_Open (float): HTF open price.
HTF_High (float): HTF high price.
HTF_Low (float): HTF low price.
HTF_Close (float): HTF close price.
HTF_Bar_Index (int): HTF bar_index.
Returns: Two arrays with drawing data of the HTF candles.
LTF_Candle(BarsBack, BodyBear, BodyBull, BordersBear, BordersBull, WickBear, WickBull, LineStyle, BoxStyle, LineWidth, LTF_Open, LTF_High, LTF_Low, LTF_Close)
Populates two arrays with drawing data of the LTF candles.
Parameters:
BarsBack (int): Bars number to display.
BodyBear (color): Candle body bear color.
BodyBull (color): Candle body bull color.
BordersBear (color): Candle border bear color.
BordersBull (color): Candle border bull color.
WickBear (color): Candle wick bear color.
WickBull (color): Candle wick bull color.
LineStyle (string): Wick style (Solid-Dotted-Dashed).
BoxStyle (string): Border style (Solid-Dotted-Dashed).
LineWidth (int): Wick width.
LTF_Open (float[]): LTF open price.
LTF_High (float[]): LTF high price.
LTF_Low (float[]): LTF low price.
LTF_Close (float[]): LTF close price.
Returns: Two arrays with drawing data of the LTF candles.
Draw_Candle(Box, Line, Offset)
Draws HTF or LTF candles.
Parameters:
Box (box[]): Box array with drawing data.
Line (line[]): Line array with drawing data.
Offset (int): Offset of the candles.
Returns: Drawing of the candles.
Populate_HTF_Ind(IndValue, BarsBack, IndColor, HTF_Bar_Index)
Populates one array with drawing data of the HTF indicator.
Parameters:
IndValue (float): Indicator value.
BarsBack (int): Indicator lines to display.
IndColor (color): Indicator color.
HTF_Bar_Index (int): HTF bar_index.
Returns: An array with drawing data of the HTF indicator.
Populate_LTF_Ind(IndValue, BarsBack, IndColor)
Populates one array with drawing data of the LTF indicator.
Parameters:
IndValue (float[]): Indicator value.
BarsBack (int): Indicator lines to display.
IndColor (color): Indicator color.
Returns: An array with drawing data of the LTF indicator.
Draw_Ind(Line, Mult, Exe)
Draws one HTF or LTF indicator.
Parameters:
Line (line[]): Line array with drawing data.
Mult (int): Coordinates multiplier.
Exe (bool): Display the indicator.
Returns: Drawing of the indicator.
Populate_HTF_Ind_D(IndValue_1, IndValue_2, BarsBack, IndColor_1, IndColor_2, HTF_Bar_Index)
Populates two arrays with drawing data of the HTF indicators.
Parameters:
IndValue_1 (float): First indicator value.
IndValue_2 (float): Second indicator value.
BarsBack (int): Indicator lines to display.
IndColor_1 (color): First indicator color.
IndColor_2 (color): Second indicator color.
HTF_Bar_Index (int): HTF bar_index.
Returns: Two arrays with drawing data of the HTF indicators.
Populate_LTF_Ind_D(IndValue_1, IndValue_2, BarsBack, IndColor_1, IndColor_2)
Populates two arrays with drawing data of the LTF indicators.
Parameters:
IndValue_1 (float[]): First indicator value.
IndValue_2 (float[]): Second indicator value.
BarsBack (int): Indicator lines to display.
IndColor_1 (color): First indicator color.
IndColor_2 (color): Second indicator color.
Returns: Two arrays with drawing data of the LTF indicators.
Draw_Ind_D(Line_1, Line_2, Mult, Exe_1, Exe_2)
Draws two LTF or HTF indicators.
Parameters:
Line_1 (line[]): First line array with drawing data.
Line_2 (line[]): Second line array with drawing data.
Mult (int): Coordinates multiplier.
Exe_1 (bool): Display the first indicator.
Exe_2 (bool): Display the second indicator.
Returns: Drawings of the indicators.
Barcolor(Box, Line, BarColor)
Colors the candles based on indicators output.
Parameters:
Box (box[]): Candle box array.
Line (line[]): Candle line array.
BarColor (color[]): Indicator color array.
Returns: Colored candles.
Populate_HTF_Ind_D_CC(IndValue_1, IndValue_2, BarsBack, BullColor, BearColor, IndColor_1, HTF_Bar_Index)
Populates two array with drawing data of the HTF indicators with color based on: IndValue_1 >= IndValue_2 ? BullColor : BearColor.
Parameters:
IndValue_1 (float): First indicator value.
IndValue_2 (float): Second indicator value.
BarsBack (int): Indicator lines to display.
BullColor (color): Bull color.
BearColor (color): Bear color.
IndColor_1 (color): First indicator color.
HTF_Bar_Index (int): HTF bar_index.
Returns: Three arrays with drawing and color data of the HTF indicators.
Populate_LTF_Ind_D_CC(IndValue_1, IndValue_2, BarsBack, BullColor, BearColor, IndColor_1)
Populates two arrays with drawing data of the LTF indicators with color based on: IndValue_1 >= IndValue_2 ? BullColor : BearColor.
Parameters:
IndValue_1 (float[]): First indicator value.
IndValue_2 (float[]): Second indicator value.
BarsBack (int): Indicator lines to display.
BullColor (color): Bull color.
BearColor (color): Bearcolor.
IndColor_1 (color): First indicator color.
Returns: Three arrays with drawing and color data of the LTF indicators.
Populate_HTF_Hist_CC(HistValue, IndValue_1, IndValue_2, BarsBack, BullColor, BearColor, HTF_Bar_Index)
Populates one array with drawing data of the HTF histogram with color based on: IndValue_1 >= IndValue_2 ? BullColor : BearColor.
Parameters:
HistValue (float): Indicator value.
IndValue_1 (float): First indicator value.
IndValue_2 (float): Second indicator value.
BarsBack (int): Indicator lines to display.
BullColor (color): Bull color.
BearColor (color): Bearcolor.
HTF_Bar_Index (int): HTF bar_index
Returns: Two arrays with drawing and color data of the HTF histogram.
Populate_LTF_Hist_CC(HistValue, IndValue_1, IndValue_2, BarsBack, BullColor, BearColor)
Populates one array with drawing data of the LTF histogram with color based on: IndValue_1 >= IndValue_2 ? BullColor : BearColor.
Parameters:
HistValue (float[]): Indicator value.
IndValue_1 (float[]): First indicator value.
IndValue_2 (float[]): Second indicator value.
BarsBack (int): Indicator lines to display.
BullColor (color): Bull color.
BearColor (color): Bearcolor.
Returns: Two array with drawing and color data of the LTF histogram.
Populate_LTF_Hist_CC_VA(HistValue, Value, BarsBack, BullColor, BearColor)
Populates one array with drawing data of the LTF histogram with color based on: HistValue >= Value ? BullColor : BearColor.
Parameters:
HistValue (float[]): Indicator value.
Value (float): First indicator value.
BarsBack (int): Indicator lines to display.
BullColor (color): Bull color.
BearColor (color): Bearcolor.
Returns: Two array with drawing and color data of the LTF histogram.
Populate_HTF_Ind_CC(IndValue, IndValue_1, BarsBack, BullColor, BearColor, HTF_Bar_Index)
Populates one array with drawing data of the HTF indicator with color based on: IndValue >= IndValue_1 ? BullColor : BearColor.
Parameters:
IndValue (float): Indicator value.
IndValue_1 (float): Second indicator value.
BarsBack (int): Indicator lines to display.
BullColor (color): Bull color.
BearColor (color): Bearcolor.
HTF_Bar_Index (int): HTF bar_index
Returns: Two arrays with drawing and color data of the HTF indicator.
Populate_LTF_Ind_CC(IndValue, IndValue_1, BarsBack, BullColor, BearColor)
Populates one array with drawing data of the LTF indicator with color based on: IndValue >= IndValue_1 ? BullColor : BearColor.
Parameters:
IndValue (float[]): Indicator value.
IndValue_1 (float[]): Second indicator value.
BarsBack (int): Indicator lines to display.
BullColor (color): Bull color.
BearColor (color): Bearcolor.
Returns: Two arrays with drawing and color data of the LTF indicator.
Draw_Lines(BarsBack, y1, y2, LineType, Fill)
Draws price lines on indicators.
Parameters:
BarsBack (int): Indicator lines to display.
y1 (float): Coordinates of the first line.
y2 (float): Coordinates of the second line.
LineType (string): Line type.
Fill (color): Fill color.
Returns: Drawing of the lines.
LineFill(Upper, Lower, BarsBack, FillColor)
Fills two lines with linefill HTF or LTF.
Parameters:
Upper (line[]): Upper line.
Lower (line[]): Lower line.
BarsBack (int): Indicator lines to display.
FillColor (color): Fill color.
Returns: Linefill of the lines.
Populate_LTF_Hist(HistValue, BarsBack, HistColor)
Populates one array with drawing data of the LTF histogram.
Parameters:
HistValue (float[]): Indicator value.
BarsBack (int): Indicator lines to display.
HistColor (color): Indicator color.
Returns: One array with drawing data of the LTF histogram.
Populate_HTF_Hist(HistValue, BarsBack, HistColor, HTF_Bar_Index)
Populates one array with drawing data of the HTF histogram.
Parameters:
HistValue (float): Indicator value.
BarsBack (int): Indicator lines to display.
HistColor (color): Indicator color.
HTF_Bar_Index (int): HTF bar_index.
Returns: One array with drawing data of the HTF histogram.
Draw_Hist(Box, Mult, Exe)
Draws HTF or LTF histogram.
Parameters:
Box (box[]): Box Array.
Mult (int): Coordinates multiplier.
Exe (bool): Display the histogram.
Returns: Drawing of the histogram.
This library helps with drawing indicators and candle charts on all timeframes.
FEATURES
- CHART DRAWING : Library provides functions for drawing High Time Frame (HTF) and Low Time Frame (LTF) candles.
- INDICATOR DRAWING : Library provides functions for drawing various types of HTF and LTF indicators.
- CUSTOM COLOR DRAWING : Library allows to color candles and indicators based on specific conditions.
- LINEFILLS : Library provides functions for drawing linefills.
CATEGORIES
The functions are named in a way that indicates they purpose:
- {Ind} : Function is meant only for indicators.
- {Hist} : Function is meant only for histograms.
- {Candle} : Function is meant only for candles.
- {Draw} : Function draws indicators, histograms and candle charts.
- {Populate} : Function generates necessary arrays required by drawing functions.
- {LTF} : Function is meant only for lower timeframes.
- {HTF} : Function is meant only for higher timeframes.
- {D} : Function draws indicators that are composed of two lines.
- {CC} : Function draws custom colored indicators.
USAGE
Import the library into your script.
Before using any {Draw} function it is necessary to use a {Populate} function.
Choose the appropriate one based on the category, provide the necessary arguments, and then use the {Draw} function, forwarding the arrays generated by the {Populate} function.
This doesn't apply to {Draw_Lines}, {LineFill}, or {Barcolor} functions.
EXAMPLE
FUNCTION LIST
HTF_Candle(BarsBack, BodyBear, BodyBull, BordersBear, BordersBull, WickBear, WickBull, LineStyle, BoxStyle, LineWidth, HTF_Open, HTF_High, HTF_Low, HTF_Close, HTF_Bar_Index)
Populates two arrays with drawing data of the HTF candles.
Parameters:
BarsBack (int): Bars number to display.
BodyBear (color): Candle body bear color.
BodyBull (color): Candle body bull color.
BordersBear (color): Candle border bear color.
BordersBull (color): Candle border bull color.
WickBear (color): Candle wick bear color.
WickBull (color): Candle wick bull color.
LineStyle (string): Wick style (Solid-Dotted-Dashed).
BoxStyle (string): Border style (Solid-Dotted-Dashed).
LineWidth (int): Wick width.
HTF_Open (float): HTF open price.
HTF_High (float): HTF high price.
HTF_Low (float): HTF low price.
HTF_Close (float): HTF close price.
HTF_Bar_Index (int): HTF bar_index.
Returns: Two arrays with drawing data of the HTF candles.
LTF_Candle(BarsBack, BodyBear, BodyBull, BordersBear, BordersBull, WickBear, WickBull, LineStyle, BoxStyle, LineWidth, LTF_Open, LTF_High, LTF_Low, LTF_Close)
Populates two arrays with drawing data of the LTF candles.
Parameters:
BarsBack (int): Bars number to display.
BodyBear (color): Candle body bear color.
BodyBull (color): Candle body bull color.
BordersBear (color): Candle border bear color.
BordersBull (color): Candle border bull color.
WickBear (color): Candle wick bear color.
WickBull (color): Candle wick bull color.
LineStyle (string): Wick style (Solid-Dotted-Dashed).
BoxStyle (string): Border style (Solid-Dotted-Dashed).
LineWidth (int): Wick width.
LTF_Open (float[]): LTF open price.
LTF_High (float[]): LTF high price.
LTF_Low (float[]): LTF low price.
LTF_Close (float[]): LTF close price.
Returns: Two arrays with drawing data of the LTF candles.
Draw_Candle(Box, Line, Offset)
Draws HTF or LTF candles.
Parameters:
Box (box[]): Box array with drawing data.
Line (line[]): Line array with drawing data.
Offset (int): Offset of the candles.
Returns: Drawing of the candles.
Populate_HTF_Ind(IndValue, BarsBack, IndColor, HTF_Bar_Index)
Populates one array with drawing data of the HTF indicator.
Parameters:
IndValue (float): Indicator value.
BarsBack (int): Indicator lines to display.
IndColor (color): Indicator color.
HTF_Bar_Index (int): HTF bar_index.
Returns: An array with drawing data of the HTF indicator.
Populate_LTF_Ind(IndValue, BarsBack, IndColor)
Populates one array with drawing data of the LTF indicator.
Parameters:
IndValue (float[]): Indicator value.
BarsBack (int): Indicator lines to display.
IndColor (color): Indicator color.
Returns: An array with drawing data of the LTF indicator.
Draw_Ind(Line, Mult, Exe)
Draws one HTF or LTF indicator.
Parameters:
Line (line[]): Line array with drawing data.
Mult (int): Coordinates multiplier.
Exe (bool): Display the indicator.
Returns: Drawing of the indicator.
Populate_HTF_Ind_D(IndValue_1, IndValue_2, BarsBack, IndColor_1, IndColor_2, HTF_Bar_Index)
Populates two arrays with drawing data of the HTF indicators.
Parameters:
IndValue_1 (float): First indicator value.
IndValue_2 (float): Second indicator value.
BarsBack (int): Indicator lines to display.
IndColor_1 (color): First indicator color.
IndColor_2 (color): Second indicator color.
HTF_Bar_Index (int): HTF bar_index.
Returns: Two arrays with drawing data of the HTF indicators.
Populate_LTF_Ind_D(IndValue_1, IndValue_2, BarsBack, IndColor_1, IndColor_2)
Populates two arrays with drawing data of the LTF indicators.
Parameters:
IndValue_1 (float[]): First indicator value.
IndValue_2 (float[]): Second indicator value.
BarsBack (int): Indicator lines to display.
IndColor_1 (color): First indicator color.
IndColor_2 (color): Second indicator color.
Returns: Two arrays with drawing data of the LTF indicators.
Draw_Ind_D(Line_1, Line_2, Mult, Exe_1, Exe_2)
Draws two LTF or HTF indicators.
Parameters:
Line_1 (line[]): First line array with drawing data.
Line_2 (line[]): Second line array with drawing data.
Mult (int): Coordinates multiplier.
Exe_1 (bool): Display the first indicator.
Exe_2 (bool): Display the second indicator.
Returns: Drawings of the indicators.
Barcolor(Box, Line, BarColor)
Colors the candles based on indicators output.
Parameters:
Box (box[]): Candle box array.
Line (line[]): Candle line array.
BarColor (color[]): Indicator color array.
Returns: Colored candles.
Populate_HTF_Ind_D_CC(IndValue_1, IndValue_2, BarsBack, BullColor, BearColor, IndColor_1, HTF_Bar_Index)
Populates two array with drawing data of the HTF indicators with color based on: IndValue_1 >= IndValue_2 ? BullColor : BearColor.
Parameters:
IndValue_1 (float): First indicator value.
IndValue_2 (float): Second indicator value.
BarsBack (int): Indicator lines to display.
BullColor (color): Bull color.
BearColor (color): Bear color.
IndColor_1 (color): First indicator color.
HTF_Bar_Index (int): HTF bar_index.
Returns: Three arrays with drawing and color data of the HTF indicators.
Populate_LTF_Ind_D_CC(IndValue_1, IndValue_2, BarsBack, BullColor, BearColor, IndColor_1)
Populates two arrays with drawing data of the LTF indicators with color based on: IndValue_1 >= IndValue_2 ? BullColor : BearColor.
Parameters:
IndValue_1 (float[]): First indicator value.
IndValue_2 (float[]): Second indicator value.
BarsBack (int): Indicator lines to display.
BullColor (color): Bull color.
BearColor (color): Bearcolor.
IndColor_1 (color): First indicator color.
Returns: Three arrays with drawing and color data of the LTF indicators.
Populate_HTF_Hist_CC(HistValue, IndValue_1, IndValue_2, BarsBack, BullColor, BearColor, HTF_Bar_Index)
Populates one array with drawing data of the HTF histogram with color based on: IndValue_1 >= IndValue_2 ? BullColor : BearColor.
Parameters:
HistValue (float): Indicator value.
IndValue_1 (float): First indicator value.
IndValue_2 (float): Second indicator value.
BarsBack (int): Indicator lines to display.
BullColor (color): Bull color.
BearColor (color): Bearcolor.
HTF_Bar_Index (int): HTF bar_index
Returns: Two arrays with drawing and color data of the HTF histogram.
Populate_LTF_Hist_CC(HistValue, IndValue_1, IndValue_2, BarsBack, BullColor, BearColor)
Populates one array with drawing data of the LTF histogram with color based on: IndValue_1 >= IndValue_2 ? BullColor : BearColor.
Parameters:
HistValue (float[]): Indicator value.
IndValue_1 (float[]): First indicator value.
IndValue_2 (float[]): Second indicator value.
BarsBack (int): Indicator lines to display.
BullColor (color): Bull color.
BearColor (color): Bearcolor.
Returns: Two array with drawing and color data of the LTF histogram.
Populate_LTF_Hist_CC_VA(HistValue, Value, BarsBack, BullColor, BearColor)
Populates one array with drawing data of the LTF histogram with color based on: HistValue >= Value ? BullColor : BearColor.
Parameters:
HistValue (float[]): Indicator value.
Value (float): First indicator value.
BarsBack (int): Indicator lines to display.
BullColor (color): Bull color.
BearColor (color): Bearcolor.
Returns: Two array with drawing and color data of the LTF histogram.
Populate_HTF_Ind_CC(IndValue, IndValue_1, BarsBack, BullColor, BearColor, HTF_Bar_Index)
Populates one array with drawing data of the HTF indicator with color based on: IndValue >= IndValue_1 ? BullColor : BearColor.
Parameters:
IndValue (float): Indicator value.
IndValue_1 (float): Second indicator value.
BarsBack (int): Indicator lines to display.
BullColor (color): Bull color.
BearColor (color): Bearcolor.
HTF_Bar_Index (int): HTF bar_index
Returns: Two arrays with drawing and color data of the HTF indicator.
Populate_LTF_Ind_CC(IndValue, IndValue_1, BarsBack, BullColor, BearColor)
Populates one array with drawing data of the LTF indicator with color based on: IndValue >= IndValue_1 ? BullColor : BearColor.
Parameters:
IndValue (float[]): Indicator value.
IndValue_1 (float[]): Second indicator value.
BarsBack (int): Indicator lines to display.
BullColor (color): Bull color.
BearColor (color): Bearcolor.
Returns: Two arrays with drawing and color data of the LTF indicator.
Draw_Lines(BarsBack, y1, y2, LineType, Fill)
Draws price lines on indicators.
Parameters:
BarsBack (int): Indicator lines to display.
y1 (float): Coordinates of the first line.
y2 (float): Coordinates of the second line.
LineType (string): Line type.
Fill (color): Fill color.
Returns: Drawing of the lines.
LineFill(Upper, Lower, BarsBack, FillColor)
Fills two lines with linefill HTF or LTF.
Parameters:
Upper (line[]): Upper line.
Lower (line[]): Lower line.
BarsBack (int): Indicator lines to display.
FillColor (color): Fill color.
Returns: Linefill of the lines.
Populate_LTF_Hist(HistValue, BarsBack, HistColor)
Populates one array with drawing data of the LTF histogram.
Parameters:
HistValue (float[]): Indicator value.
BarsBack (int): Indicator lines to display.
HistColor (color): Indicator color.
Returns: One array with drawing data of the LTF histogram.
Populate_HTF_Hist(HistValue, BarsBack, HistColor, HTF_Bar_Index)
Populates one array with drawing data of the HTF histogram.
Parameters:
HistValue (float): Indicator value.
BarsBack (int): Indicator lines to display.
HistColor (color): Indicator color.
HTF_Bar_Index (int): HTF bar_index.
Returns: One array with drawing data of the HTF histogram.
Draw_Hist(Box, Mult, Exe)
Draws HTF or LTF histogram.
Parameters:
Box (box[]): Box Array.
Mult (int): Coordinates multiplier.
Exe (bool): Display the histogram.
Returns: Drawing of the histogram.
Pine腳本庫
在真正的TradingView精神中，作者將這段Pine程式碼發佈為開源程式庫，以便我們社群的其他Pine程式設計師可以重複使用它。請向作者致敬！您可以私下使用這個函式庫，或在其他開源出版品中使用，但在出版物中再次使用這段程式碼將受到網站規則的約束。
免責聲明
這些資訊和出版物並不意味著也不構成TradingView提供或認可的金融、投資、交易或其他類型的意見或建議。請在使用條款閱讀更多資訊。
