matrixautotable

2022年4月25日

Library "matrixautotable"
Automatic Table from Matrixes with pseudo correction for na values and default color override for missing values. uses overloads in cases of cheap float only, with additional addon for strings next, then cell colors, then text colors, and tooltips last.. basic size and location are auto, include the template to speed this up...

TODO : make bools version

var string  group_table    = ' Table'
var int     _tblssizedemo  = input.int    ( 10 )
string      tableYpos      = input.string ( 'middle'    , '↕'               , inline = 'place' , group = group_table, options=['top', 'middle', 'bottom'])
string      tableXpos      = input.string ( 'center'    , '↔'               , inline = 'place' , group = group_table, options=['left', 'center', 'right'], tooltip='Position on the chart.')
int         _textSize      = input.int    ( 1           , 'Table Text Size' , inline = 'place' , group = group_table)

var matrix<float>  _floatmatrix     = matrix.new<float>  (_tblssizedemo, _tblssizedemo,  0            )
var matrix<string> _stringmatrix     = matrix.new<string> (_tblssizedemo, _tblssizedemo,  'test'       )
var matrix<color>  _bgcolormatrix    = matrix.new<color>  (_tblssizedemo, _tblssizedemo,  color.white  )
var matrix<color>  _textcolormatrix  = matrix.new<color>  (_tblssizedemo, _tblssizedemo,  color.black  )
var matrix<string> _tooltipmatrix    = matrix.new<string> (_tblssizedemo, _tblssizedemo,  'tool'       )


// basic table ready to go with the aboec matrixes (replace in your code)

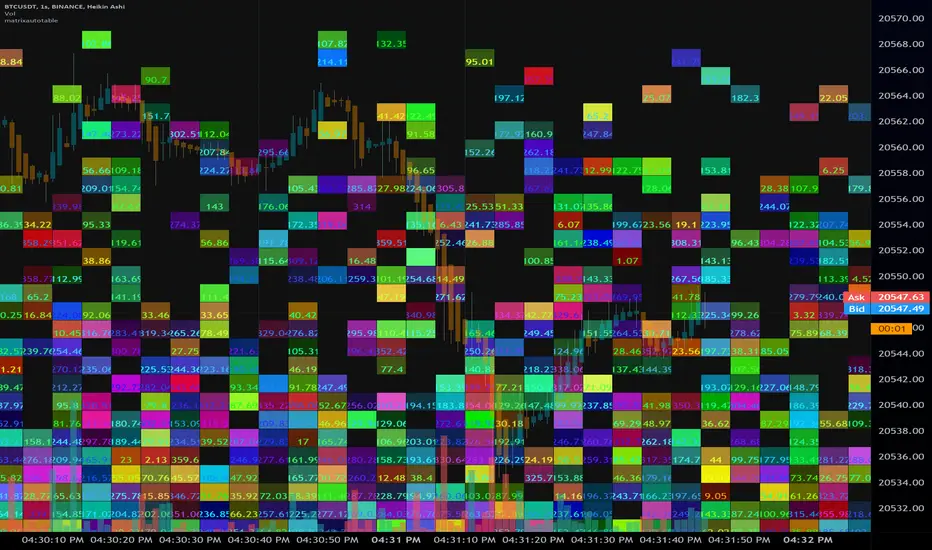

//   for demo purpose, random colors, random nums, random na vals

if barstate.islast
    varip _xsize = matrix.rows    (_floatmatrix) -1
    varip _ysize = matrix.columns (_floatmatrix) -1
    for _xis = 0  to _xsize  -1  by 1
        for _yis  = 0 to _ysize  -1 by 1
            _randomr = int(math.random(50,250))
            _randomg = int(math.random(50,250))
            _randomb = int(math.random(50,250))
            _randomt = int(math.random(10,90 ))
            bgcolor  = color.rgb(250 - _randomr, 250 - _randomg, 250 - _randomb, 100 - _randomt )
            txtcolor = color.rgb(_randomr, _randomg, _randomb, _randomt                         )
            matrix.set(_bgcolormatrix    ,_yis,_xis, bgcolor )
            matrix.set(_textcolormatrix  ,_yis,_xis, txtcolor)
            matrix.set(_floatmatrix      ,_yis,_xis, _randomr)

            // random na
            _ymiss = math.floor(math.random(0, _yis))
            _xmiss = math.floor(math.random(0, _xis))
            matrix.set( _floatmatrix     ,_ymiss,  _xis, na)
            matrix.set( _stringmatrix    ,_ymiss,  _xis, na)
            matrix.set( _bgcolormatrix   ,_ymiss,  _xis, na)
            matrix.set( _textcolormatrix ,_ymiss,  _xis, na)
            matrix.set( _tooltipmatrix   ,_ymiss,  _xis, na)

// import here
import kaigouthro/matrixautotable/1 as mtxtbl

// and render table..
mtxtbl.matrixtable(_floatmatrix, _stringmatrix, _bgcolormatrix, _textcolormatrix, _tooltipmatrix, _textSize   ,tableYpos   ,tableXpos)

matrixtable(_floatmatrix, _stringmatrix, _bgcolormatrix, _textcolormatrix, _tooltipmatrix, _textSize, tableYpos, tableXpos) matrixtable
  Parameters:
    _floatmatrix: <matrix> float vals
    _stringmatrix: <matrix> string
    _bgcolormatrix: <matrix> color
    _textcolormatrix: <matrix>color
    _tooltipmatrix: <matrix> string
    _textSize: int
    tableYpos: string
    tableXpos: string

matrixtable(_floatmatrix, _stringmatrix, _bgcolormatrix, _textcolormatrix, _textSize, tableYpos, tableXpos) matrixtable
  Parameters:
    _floatmatrix: <matrix> float vals
    _stringmatrix: <matrix> string
    _bgcolormatrix: <matrix> color
    _textcolormatrix: <matrix>color
    _textSize: int
    tableYpos: string
    tableXpos: string

matrixtable(_floatmatrix, _stringmatrix, _bgcolormatrix, _txtdefcol, _textSize, tableYpos, tableXpos) matrixtable
  Parameters:
    _floatmatrix: <matrix> float vals
    _stringmatrix: <matrix> string
    _bgcolormatrix: <matrix> color
    _txtdefcol: color
    _textSize: int
    tableYpos: string
    tableXpos: string

matrixtable(_floatmatrix, _stringmatrix, _txtdefcol, _bgdefcol, _textSize, tableYpos, tableXpos) matrixtable
  Parameters:
    _floatmatrix: <matrix> float vals
    _stringmatrix: <matrix> string
    _txtdefcol: color
    _bgdefcol: color
    _textSize: int
    tableYpos: string
    tableXpos: string

matrixtable(_floatmatrix, _txtdefcol, _bgdefcol, _textSize, tableYpos, tableXpos) matrixtable
  Parameters:
    _floatmatrix: <matrix> float vals
    _txtdefcol: color
    _bgdefcol: color
    _textSize: int
    tableYpos: string
    tableXpos: string

2022年5月17日

發行說明

v2

Updated:
matrixtable(_stringmatrix, _textSize, tableYpos, tableXpos) matrixtable
  Parameters:
    _stringmatrix: <matrix> float vals
    _textSize: int
    tableYpos: string
    tableXpos: string

2022年6月19日

發行說明

v3

Fixed Error allowing for table resizing dynamically.

2022年6月19日

發行說明

v4
minor glitch, fixed table repaint issue

2022年10月2日

發行說明

v5

Updated Glitch problem on varying matrix sizes.
probably,..

2022年10月8日

發行說明

v6

ix! matrixes of differrent sizes will fill to match largest of them with na vals

2022年10月8日

發行說明

v7

2022年10月16日

發行說明

v8
quick lastconfirmedhistory availability and better color invert/default cols

2022年10月22日

發行說明

v9

Now can fit to screen area, change cell sizing, and returns table object for adjusting frame/border/bacckground

Added:
bgcolor(bgcolor)
  Set background or Table
  Parameters:
    bgcolor: New Background Color
  Returns: void

border()

frame()

Updated:
mtable()
  autogenerate table from string matrix

matrixtable(_stringmatrix, _textSize, tableYpos, tableXpos)
  matrixtable
  Parameters:
    _stringmatrix: <matrix> float vals
    _textSize: int
    tableYpos: string
    tableXpos: string

2022年11月6日

發行說明

v10

oversight - table blanking when live and all mtx's even sized fixed.

2022年11月6日

發行說明

v11
added option for any type for two w/ or without background col
and any single type with plain no colors

Added:
anytwo()
anyone()

2022年11月7日

發行說明

v12
switch dat/titles in anytwo, hide NAN on string convert

2022年12月20日

發行說明

v13

added customizable w/h of cells and library imports updated to latest

Updated:
matrixtable(_stringmatrix, _textSize, tableYpos, tableXpos)
  matrixtable
  Parameters:
    _stringmatrix: <matrix> float vals
    _textSize: int
    tableYpos: string
    tableXpos: string

anytwo()

anyone()

2023年1月9日

發行說明

v14
minor addition, (total rewrite coming in future)

Updated:
anyone(_colormtx, _textSize, tableYpos, tableXpos, _fit, _shrink, _w, _h, _defaultbg, _defaultxt)
  Parameters:
    _colormtx
    _textSize
    tableYpos
    tableXpos
    _fit
    _shrink
    _w
    _h
    _defaultbg
    _defaultxt
