Inputs

Introduction

Inputs receive values that users can change from a script’s “Settings/Inputs” tab. By utilizing inputs, programmers can write scripts that users can more easily adapt to their preferences.

The following script plots a 20-period simple moving average (SMA) using ta.sma(close, 20). While it is straightforward to write, the code is not very flexible because the function call uses specific source and length arguments that users cannot change without modifying the code:

If we write our script this way instead, it becomes much more flexible, as users can select the source and the length values they want to use from the “Settings/Inputs” tab without changing the source code:

Inputs are only accessible while a script runs on a chart. Users can access script inputs from the “Settings” dialog box. To open this dialog, users can:

• Double-click on the name of an on-chart indicator
• Right-click on the script’s name and choose the “Settings” item from the dropdown menu
• Choose the “Settings” item from the “More” menu icon (three dots) that appears when hovering over the indicator’s name on the chart
• Double-click on the indicator’s name from the Data Window (fourth icon down to the right of the chart)

The “Settings” dialog always contains the “Style” and “Visibility” tabs, which allow users to specify their preferences about the script’s visuals and the chart timeframes that can display its outputs.

When a script contains calls to input.*() functions, an “Inputs” tab also appears in the “Settings” dialog box.

Scripts process inputs when users add them to the chart or change the values in the script’s “Settings/Inputs” tab. Any changes to a script’s inputs prompt it to re-execute across all available data using the new specified values.

Input functions

Pine Script® features the following input functions:

• input()
• input.int()
• input.float()
• input.bool()
• input.color()
• input.string()
• input.text_area()
• input.timeframe()
• input.symbol()
• input.source()
• input.session()
• input.time()
• input.price()
• input.enum()

Scripts create input widgets in the “Inputs” tab that accept different types of inputs based on their input.*() function calls. By default, each input appears on a new line of the “Inputs” tab in the order of the input.*() calls. Programmers can also organize inputs in different ways by using the input.*() functions’ group and inline parameters. See this section below for more information.

Our Style guide recommends placing input.*() calls at the beginning of the script.

Input functions typically contain several parameters that allow programmers to define their default values, value limits, their organization in the “Inputs” tab, and other properties.

Since an input.*() call is simply another function call in Pine Script, programmers can combine them with arithmetic, comparison, logical, and ternary operators to assign expressions to variables. This simple script compares the result from a call to input.string() to the “On” string and assigns the result to the plotDisplayInput variable. This variable is of the “input bool” type because the == operator returns a “bool” value:

All values returned by input.*() functions except “source” ones are “input” qualified values. See our User Manual’s section on type qualifiers for more information.

Input function parameters

The parameters common to all input functions are: defval, title, tooltip, inline, group, and display. Some input functions also include other parameters: options, minval, maxval, step and confirm.

All these parameters expect “const” arguments. The only exceptions are for the defval and options parameters of the source and enum inputs, as input.source() uses “series float” value, and input.enum() uses members of an enum type.

Since input.*() parameters accept “const” arguments in most cases and the “input” and other qualifiers are stronger than “const”, it follows that one cannot use the result from one input.*() call as an argument in another input.*() call.

Let’s go over each parameter:

• defval is the first parameter of all input functions. It is the default value that appears in the input widget. It requires an argument of the type of input value that the function applies to.
• title requires a “const string” argument. It is the field’s label.
• tooltip requires a “const string” argument. When the parameter is used, a question mark icon will appear to the right of the field. When users hover over it, the tooltip’s text will appear. Note that if multiple input fields are grouped on one line using inline, the tooltip will always appear to the right of the rightmost field, and display the text of the last tooltip argument used in the line. Newlines (\n) are supported in the argument string.
• inline requires a “const string” argument. Using the same argument for the parameter in multiple input.*() calls will group their input widgets on the same line. There is a limit to the width the “Inputs” tab will expand, so a limited quantity of input fields can be fitted on one line. Using one input.*() call with a unique argument for inline has the effect of bringing the input field left, immediately after the label, foregoing the default left-alignment of all input fields used when no inline argument is used.
• group requires a “const string” argument. Use it to group any number of inputs in an organized section. The string used as the group argument becomes the section’s heading. All input.*() calls to be grouped together must use the same string for their group argument.
• options requires a comma-separated list of elements enclosed in square brackets (e.g., ["ON", "OFF"], [1, 2, 3], [myEnum.On, myEnum.Off]). The input uses the specified elements as menu selections in its resulting dropdown widget. Users can only select one menu item at a time. When supplying an options list, the defval value must be one of the list’s elements. Inputs that allow minval, maxval, or step parameters cannot use those parameters and the options parameter simultaneously.
• minval requires a “const int/float” argument, depending on the type of the defval value. It is the minimum valid value for the input field.
• maxval requires a “const int/float” argument, depending on the type of the defval value. It is the maximum valid value for the input field.
• step is the increment by which the field’s value will move when the widget’s up/down arrows are used.
• confirm requires a “const bool” (true or false) argument. This parameter affects the behavior of the script when it is added to a chart. input.*() calls using confirm = true will cause the “Settings/Inputs” tab to popup when the script is added to the chart. confirm is useful to ensure that users configure a particular field.

The minval, maxval and step parameters are only present in the signature of the input.int() and input.float() functions.

Input types

The next sections explain what each input function does. As we proceed, we will explore the different ways you can use input functions and organize their display.

Generic input

input() is a simple, generic function that supports the fundamental Pine Script types: “int”, “float”, “bool”, “color” and “string”. It also supports “source” inputs, which are price-related values such as close, hl2, hlc3, and hlcc4, or which can be used to receive the output value of another script.

Its signature is:

input(defval, title, tooltip, inline, group) → input int/float/bool/color/string | series float

The function automatically detects the type of input by analyzing the type of the defval argument used in the function call. This script shows all the supported types and the qualified type returned by the function when used with defval arguments of different types:

Integer input

Two signatures exist for the input.int() function; one when options is not used, the other when it is:

input.int(defval, title, minval, maxval, step, tooltip, inline, group, confirm) → input int
input.int(defval, title, options, tooltip, inline, group, confirm) → input int

This call uses the options parameter to propose a pre-defined list of lengths for the MA:

This one uses the minval parameter to limit the length:

The version with the options list uses a dropdown menu for its widget. When the options parameter is not used, a simple input widget is used to enter the value:

Float input

Two signatures exist for the input.float() function; one when options is not used, the other when it is:

input.float(defval, title, minval, maxval, step, tooltip, inline, group, confirm) → input int
input.float(defval, title, options, tooltip, inline, group, confirm) → input int

Here, we use a “float” input for the factor used to multiple the standard deviation, to calculate Bollinger Bands:

The input widgets for floats are similar to the ones used for integer inputs:

Boolean input

Let’s continue to develop our script further, this time by adding a boolean input to allow users to toggle the display of the BBs:

Note that:

• We have added an input using input.bool() to set the value of showBBInput.
• We use the inline parameter in that input and in the one for bbFactorInput to bring them on the same line. We use "01" for its argument in both cases. That is how the Pine Script compiler recognizes that they belong on the same line. The particular string used as an argument is unimportant and does not appear anywhere in the “Inputs” tab; it is only used to identify which inputs go on the same line.
• We have vertically aligned the title arguments of our input.*() calls to make them easier to read.
• We use the showBBInput variable in our two plot() calls to plot conditionally. When the user unchecks the checkbox of the showBBInput input, the variable’s value becomes false. When that happens, our plot() calls plot the na value, which displays nothing. We use true as the default value of the input, so the BBs plot by default.
• Because we use the inline parameter for the bbFactorInput variable, its input field in the “Inputs” tab does not align vertically with that of maLengthInput, which doesn’t use inline.

Color input

As explained in this section of the Colors page, selecting the colors of a script’s outputs via the “Settings/Style” tab is not always possible. In the case where one cannot choose colors from the “Style” tab, programmers can create color inputs with the input.color() function to allow color customization from the “Settings/Inputs” tab.

Suppose we wanted to plot our BBs with a ligther transparency when the high and low values are higher/lower than the BBs. We can use a code like this to create the colors:

When using dynamic (“series”) color components like the transp arguments in the above code, the color widgets in the “Settings/Style” tab will no longer appear. Let’s create our own input for color selection, which will appear in the “Settings/Inputs” tab:

Note that:

• We have added two calls to input.color() to gather the values of the maColorInput and bbColorInput variables. We use maColorInput directly in the plot(ma, "MA", maColorInput) call, and we use bbColorInput to build the bbHiColor and bbLoColor variables, which modulate the transparency using the position of price relative to the BBs. We use a conditional value for the transp value we call color.new() with, to generate different transparencies of the same base color.
• We do not use a title argument for our new color inputs because they are on the same line as other inputs allowing users to understand to which plots they apply.
• We have reorganized our inline arguments so they reflect the fact we have inputs grouped on two distinct lines.

String input

The input.string() function creates a string input with either a single-line text field or a dropdown menu of predefined text options. Other input.*() functions also return “string” values. However, most of them are specialized for specific tasks, such as defining timeframes, symbols, and sessions.

If a call to the input.string() function includes an options argument, it creates a dropdown menu containing the listed options. Otherwise, the call creates a text field that parses user-input text into a “string” value.

Like the input.text_area() function, the input.string() text can contain up to 4096 characters, including horizontal whitespaces. However, because the input’s field in the “Settings/Inputs” tab is narrow, input.string() is best suited for defining small strings or for providing a quick set of input options for customizing calculations.

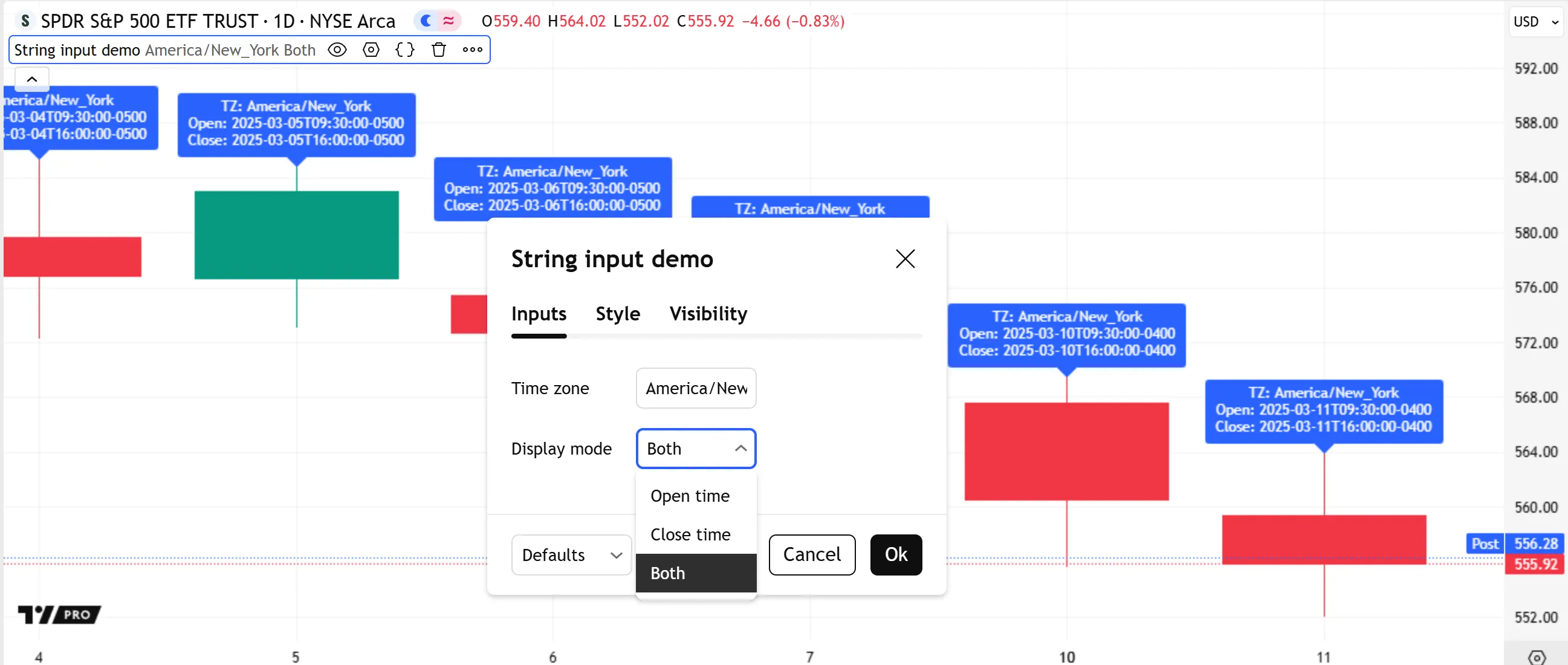

The simple script below contains two input.string() calls. The first call creates a text field for defining the timezone argument of two str.format_time() calls. It allows users to supply any text representing a time zone in UTC-offset or IANA formats. The second call creates a dropdown input with three preset options that determine the text shown in the drawn labels ("Open time", "Close time", or "Both"):

Note that:

• An alternative way to provide a strict list of input options is to use an enum input, which constructs a dropdown menu based on the members of an enum type.
• In contrast to string declarations in code, the text field from a string input treats an input backslash (\) as a literal character. Therefore, the input.string() function does not parse input escape sequences such as \n.

Text area input

The input.text_area() function creates a text field for parsing user-specified text into a “string” value. The text field generated by this function is much larger than the field from input.string(). Additionally, it supports multiline text.

Programmers often use text area inputs for purposes such as alert customization and multi-parameter lists.

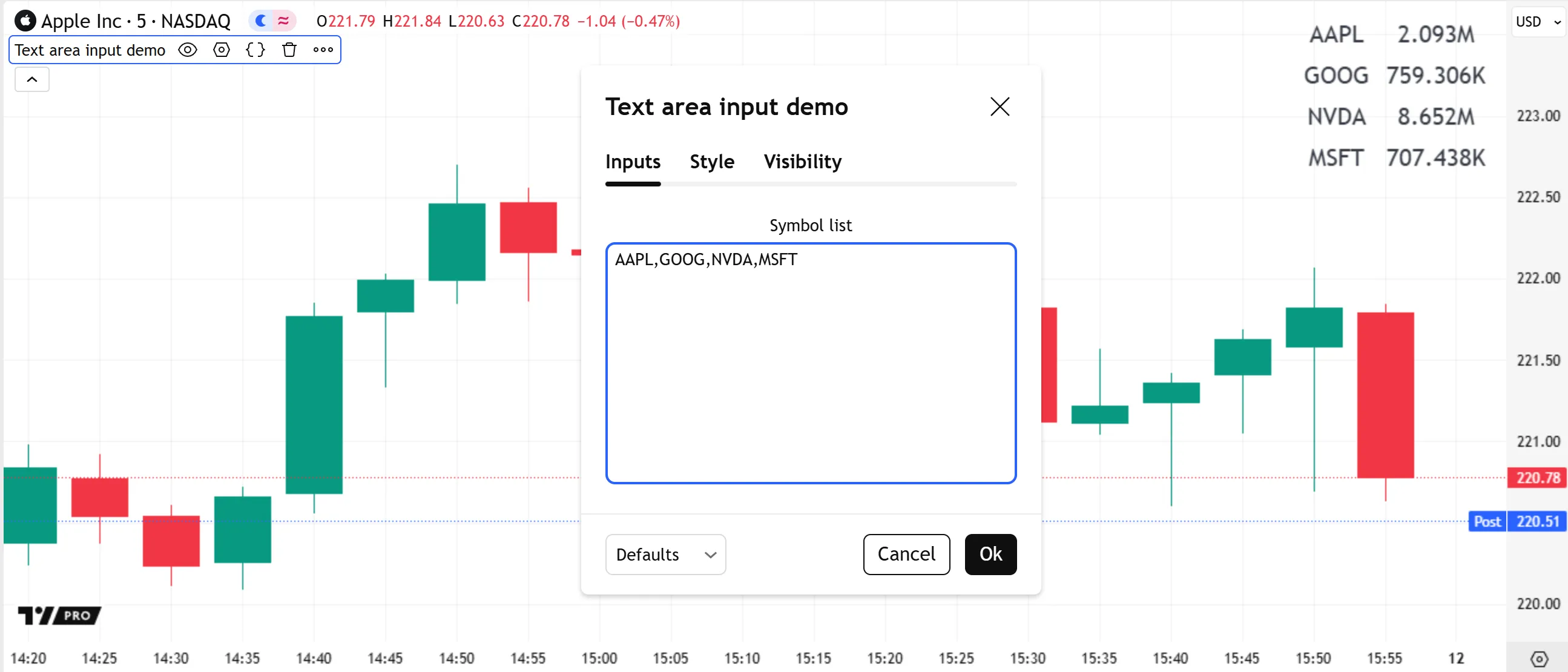

This example uses the value of a text area input to represent a comma-separated list of symbols. The script splits the parsed “string” value by its comma characters to construct an array of symbol substrings, then calls request.security() within a for…in loop on that array to dynamically retrieve the latest volume data for each specified symbol. On each loop iteration, the script converts the data to a “string” value with str.tostring() and displays the result in a table:

Note that:

• The script can use request.security() within a loop because dynamic requests are enabled by default.
• As with input.string(), the input.text_area() function’s text field treats backslashes (\) as literal characters. It cannot process escape sequences. However, the field automatically parses any line terminators and tab spaces in the specified text.
• Because text area inputs allow freeform, multiline text, it is often helpful to validate the input.text_area() function’s results to prevent erroneous user inputs. Refer to the Matching patterns section of the Strings page for an example that confirms an input symbol list using regular expressions.

Timeframe input

The input.timeframe() function creates a dropdown input containing timeframe choices. It returns a “string” value representing the selected timeframe in our specification format, which scripts can use in request.*() calls to retrieve data from user-selected timeframes.

The following script uses request.security() on each bar to fetch the value of a ta.sma() call from a user-specified higher timeframe, then plots the result on the chart:

Note that:

• By default, the input.timeframe() call’s dropdown contains options for the chart’s timeframe and all timeframes listed in the chart’s “Time interval” menu. To restrict the available options to specific preset timeframes, pass a tuple of timeframe strings to the function’s options parameter.
• This script raises a runtime error if the estimated number of seconds in the tfInput timeframe is less than the number of seconds in the main timeframe, preventing it from requesting lower-timeframe data. See this section of the Other timeframes and data page to learn more.
• The request.security() call uses barmerge.lookahead_on as its lookahead argument, and it offsets the expression argument by one bar when the tfInput represents a higher timeframe to avoid repainting.

Symbol input

The input.symbol() function creates an input widget that mirrors the chart’s “Symbol Search” widget. It returns a “string” ticker identifier representing the chosen symbol and exchange, which scripts can use in request.*() calls to retrieve data from other contexts.

The script below uses request.security() to retrieve the value of a ta.rsi() call evaluated on a user-specified symbol’s prices. It plots the requested result on the chart in a separate pane:

Note that:

• The defval argument in the input.symbol() call is an empty “string”. When the request.security() call in this example uses this default value as the symbol argument, it calculates the RSI using the chart symbol’s data. If the user wants to revert to the chart’s symbol after choosing another symbol, they can select “Reset settings” from the “Defaults” dropdown at the bottom of the “Settings” menu.

Session input

Session inputs are useful to gather start-stop values for periods of time. The input.session() built-in function creates an input widget allowing users to specify the beginning and end time of a session. Selections can be made using a dropdown menu, or by entering time values in “hh:mm” format.

The value returned by input.session() is a valid string in session format. See the manual’s page on sessions for more information.

Session information can also contain information on the days where the session is valid. We use an input.string() function call here to input that day information:

Note that:

• This script proposes a default session of “0600-1700”.
• The input.string() call uses a tooltip to provide users with help on the format to use to enter day information.
• A complete session string is built by concatenating the two strings the script receives as inputs.
• We explicitly declare the type of our two inputs with the string keyword to make it clear those variables will contain a string.
• We detect if the chart bar is in the user-defined session by calling time() with the session string. If the current bar’s time value (the time at the bar’s open) is not in the session, time() returns na, so inSession will be true whenever time() returns a value that is not na.

Source input

Source inputs are useful to provide a selection of two types of sources:

• Price values, namely: open, high, low, close, hl2, hlc3, and ohlc4.
• The values plotted by other scripts on the chart. This can be useful to “link” two or more scripts together by sending the output of one as an input to another script.

This script simply plots the user’s selection of source. We propose the high as the default value:

This shows a chart where, in addition to our script, we have loaded an “Arnaud Legoux Moving Average” indicator. See here how we use our script’s source input widget to select the output of the ALMA script as an input into our script. Because our script plots that source in a light-purple thick line, you see the plots from the two scripts overlap because they plot the same value:

Time input

The input.time() function creates a time input, which converts a user-specified date and time, in the chart’s time zone, into a time zone-agnostic UNIX timestamp. The timestamp represents the absolute number of milliseconds elapsed since 00:00:00 UTC on January 1, 1970. The input’s defval argument can be any “const int” value, including the value returned by the single-argument overload of the timestamp() function.

The input.time() function generates two fields: one for the date and the other for the time of day. Additionally, it adds a vertical marker to the chart. Users can change the input time either by moving this marker or by updating the value in the “Settings/Inputs” tab.

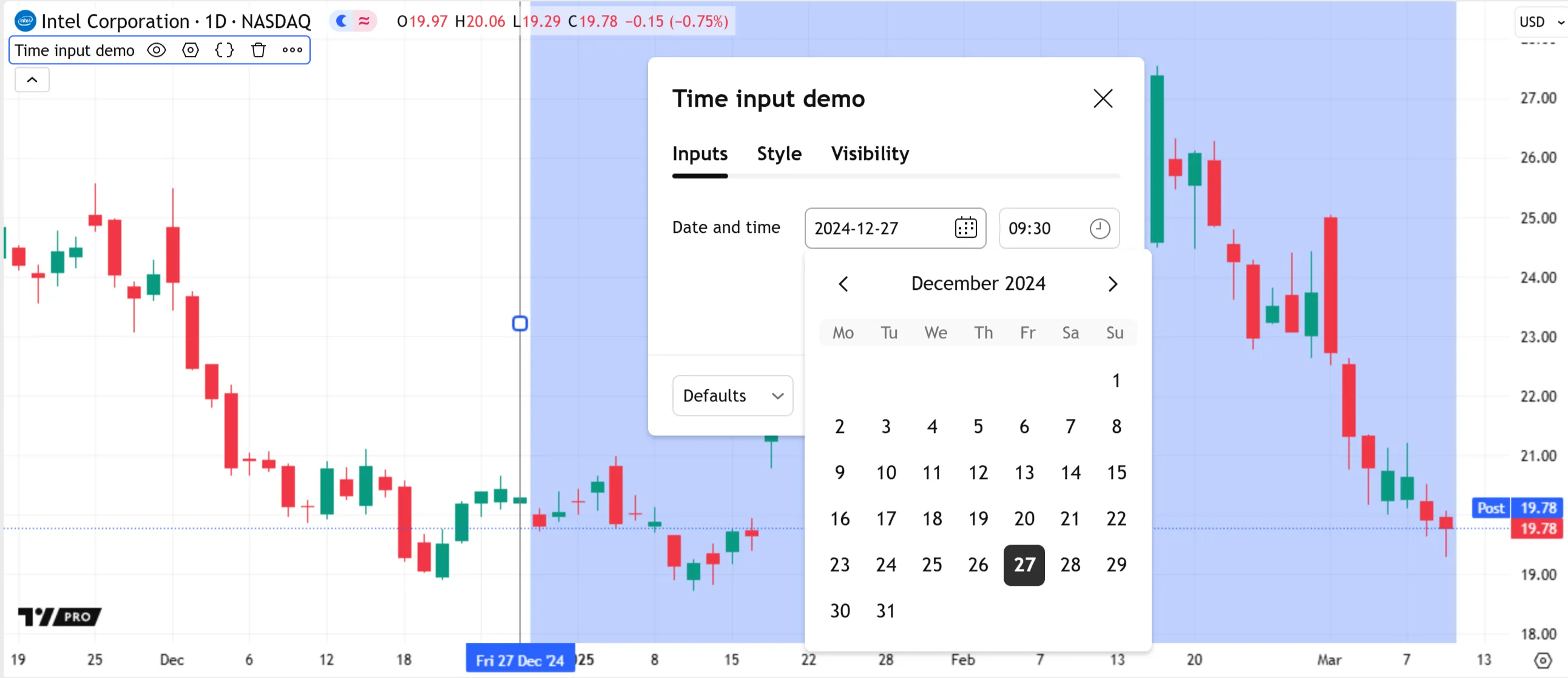

This simple script highlights the chart background for each bar whose opening time is past the date and time specified in a time input’s fields. This script defines the input.time() call’s default argument as the result of a timestamp() call that calculates the UNIX timestamp corresponding to December 27, 2024, at 09:30 in UTC-5:

Note that:

• The vertical line to the left of the background highlight is visible when selecting the script’s status line or opening the “Settings” menu. Moving this line changes the input timestamp. Users can also change the time by choosing “Reset points” from the script’s “More” menu and selecting a new point directly on the chart.
• Changing the time zone in the chart’s settings can change the values shown in the input fields. However, the underlying UNIX timestamp does not change because it is unaffected by time zones.
• Users can pair time inputs with price inputs to create interactive chart points. See the next section to learn more.

Price input

The input.price() function creates a price input, which returns a specified floating-point value, similar to the input.float() function. Additionally, it adds a horizontal marker to the chart, allowing users to adjust the “float” value graphically, without opening the “Settings/Inputs” tab.

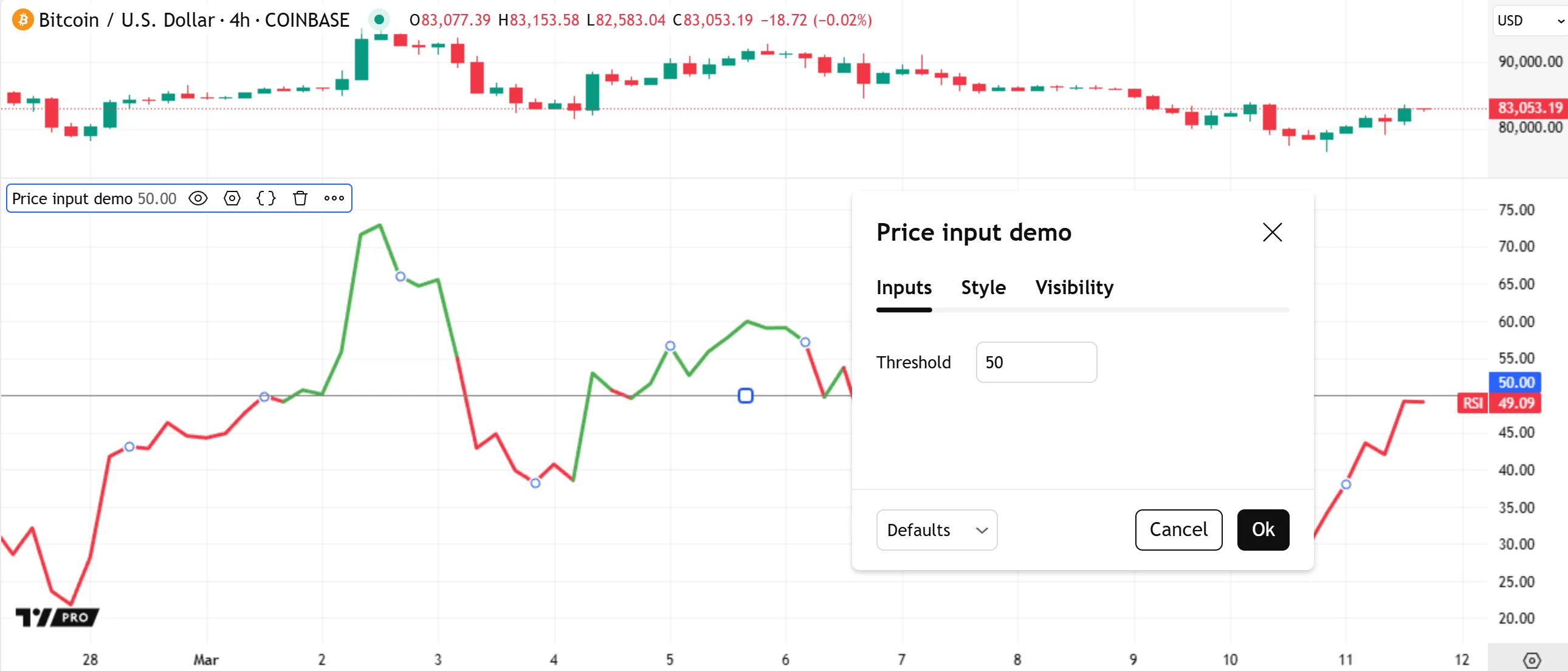

For example, this script calculates an RSI and plots the result with different colors based on the thresholdInput value. The plot is green if the RSI is above the value. Otherwise, it is red. Unlike a standard float input, users can set this script’s input value by dragging the input’s horizontal marker up or down on the chart:

Programmers can also pair price inputs and time inputs to add interactive points for custom calculations or drawings. When a script creates pairs of time and price inputs that belong to the same group, and each pair has a unique, matching inline argument, it adds point markers on the chart instead of separate horizontal and vertical markers. Users can move these point markers to adjust input price and time values simultaneously.

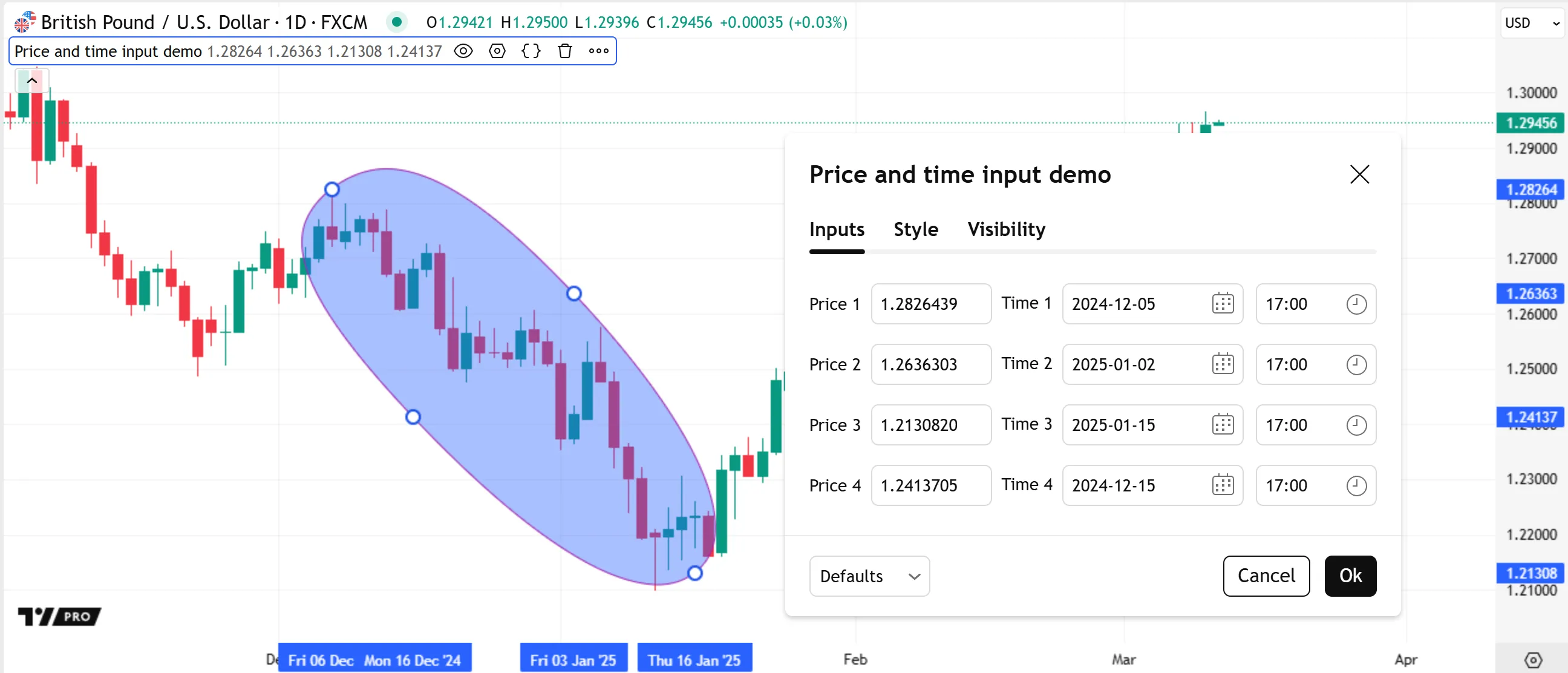

This example creates four pairs of price and time inputs with distinct inline values. Each input includes confirm = true, meaning that users set the values when they add the script to a chart. The script prompts users to set four time-price points, then draws a closed polyline that passes through all the valid chart locations closest to the specified coordinates:

Note that:

• Setting input times and prices together is possible only if there is exactly one input pair per inline value. If the inputs do not include inline arguments, or if more inputs have the same argument, the script sets times and prices separately.
• The script creates the drawing by constructing an array of chart points, then using that array in a polyline.new() call. Refer to the Polylines section of the Lines and boxes page to learn more about polyline drawings.

Enum input

The input.enum() function creates a dropdown input that displays field titles corresponding to distinct members (possible values) of an enum type. The function returns one of the unique, named values from a declared enum, which scripts can use in calculations and logic requiring more strict control over allowed values and operations. Supply a list of enum members to the options parameter to specify the members users can select from the dropdown. If one does not specify an enum field’s title, its title is the “string” representation of its name.

This example declares a SignalType enum with four fields representing named signal display modes: long, short, both, and none. The script uses a member of this enum type as the defval argument in the input.enum() call to generate a dropdown in the “Inputs” tab, allowing users to select one of the enum’s titles to control which signals it displays on the chart:

Note that:

• The sigInput value is the SignalType member whose field contains the selected title.
• Since we did not specify a title for the none field of the enum, its title is the “string” representation of its name (“none”), as we see in the above image of the enum input’s dropdown.

By default, an enum input displays the titles of all an enum’s members within its dropdown. If we supply an options argument to the input.enum() call, it will only allow users to select the members included in that list, e.g.:

The above options argument specifies that users can only view and select the titles of the long and short fields from the SignalType enum. No other options are allowed:

Other features affecting Inputs

Some parameters of the indicator() and strategy() functions populate a script’s “Settings/Inputs” tab with additional inputs. These parameters are timeframe, timeframe_gaps, and calc_bars_count. For example:

Tips

The design of your script’s inputs has an important impact on the usability of your scripts. Well-designed inputs are more intuitively usable and make for a better user experience:

• Choose clear and concise labels (your input’s title argument).
• Choose your default values carefully.
• Provide minval and maxval values that will prevent your code from producing unexpected results, e.g., limit the minimal value of lengths to 1 or 2, depending on the type of MA you are using.
• Provide a step value that is congruent with the value you are capturing. Steps of 5 can be more useful on a 0-200 range, for example, or steps of 0.05 on a 0.0-1.0 scale.
• Group related inputs on the same line using inline; bull and bear colors for example, or the width and color of a line.
• When you have many inputs, group them into meaningful sections using group. Place the most important sections at the top.
• Do the same for individual inputs within sections.

It can be advantageous to vertically align different arguments of multliple input.*() calls in your code. When you need to make global changes, this will allow you to use the Editor’s multi-cursor feature to operate on all the lines at once.

Because It is sometimes necessary to use Unicode spaces to In order to achieve optimal alignment in inputs. This is an example:

Note that:

• We use the group parameter to distinguish between the two sections of inputs. We use a constant to hold the name of the groups. This way, if we decide to change the name of the group, we only need to change it in one place.
• The first sections inputs widgets do not align vertically. We are using inline, which places the input widgets immediately to the right of the label. Because the labels for the ma1SourceInput and long1SourceInput inputs are of different lengths the labels are in different y positions.
• To make up for the misalignment, we pad the title argument in the ma2SourceInput line with three Unicode EN spaces (U+2002). Unicode spaces are necessary because ordinary spaces would be stripped from the label. You can achieve precise alignment by combining different quantities and types of Unicode spaces. See here for a list of Unicode spaces of different widths.
